Passiivinen 4G/5G-toistin 10 m kaapeli Sirio 8610128+ 8610130+203207203 VSS
Sirio

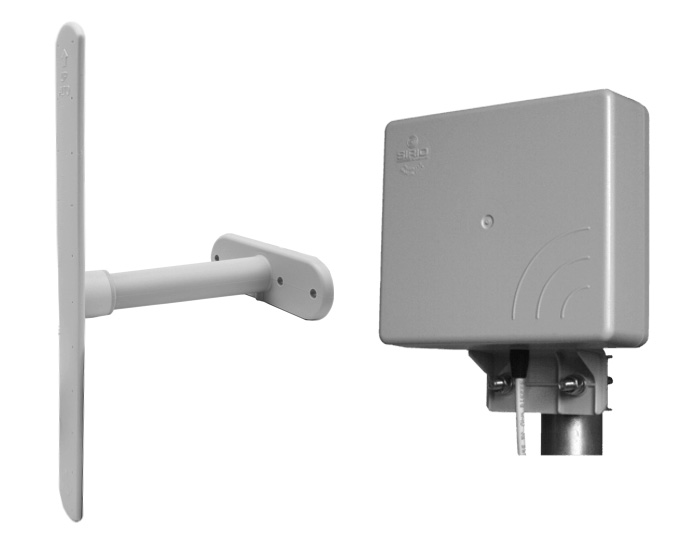

An omnidirectional antenna (8610130) is installed outdoors. It has a permanently attached 10 m cable with an SMA male connector.
A directional antenna (model 8610128) is installed indoors.
The passive mobile phone repeater transfers a strong mobile signal from outdoors to indoors. Please note that a passive repeater will not work in areas where the outdoor signal is weak.
Typical applications include civil defence shelters, basements, passive houses and other tightly sealed buildings. Indoor coverage varies from a few metres depending on the strength of the outdoor signal. Coverage can be improved by using low-loss Ecoflex cable with antennas 8610128 and 8610129.
Technical specifications of antenna 8610130:
Frequency: 790–960 / 1710–2700 MHz
Gain:
790–960 MHz: 5 dBi
1710–1880 MHz: 5 dBi
1900–2170 MHz: 6 dBi
2400–2700 MHz: 5–6 dBi
VSWR: <2:1
Dimensions: 335 × 166 × 144 mm
Weight: 530 g
Operating temperature: −30 to +70 °C
Technical specifications of antenna 8610128:
Frequency: 790–960 / 1710–2700 MHz
Gain:
790–960 MHz: 6–7 dBi
1710–1880 MHz: 9 dBi
1900–2170 MHz: 9 dBi
2300–2700 MHz: 8–9 dBi
VSWR: <2:1
Dimensions: 170 × 155 × 75 mm
Weight: 580 g
Operating temperature: −30 to +70 °C
