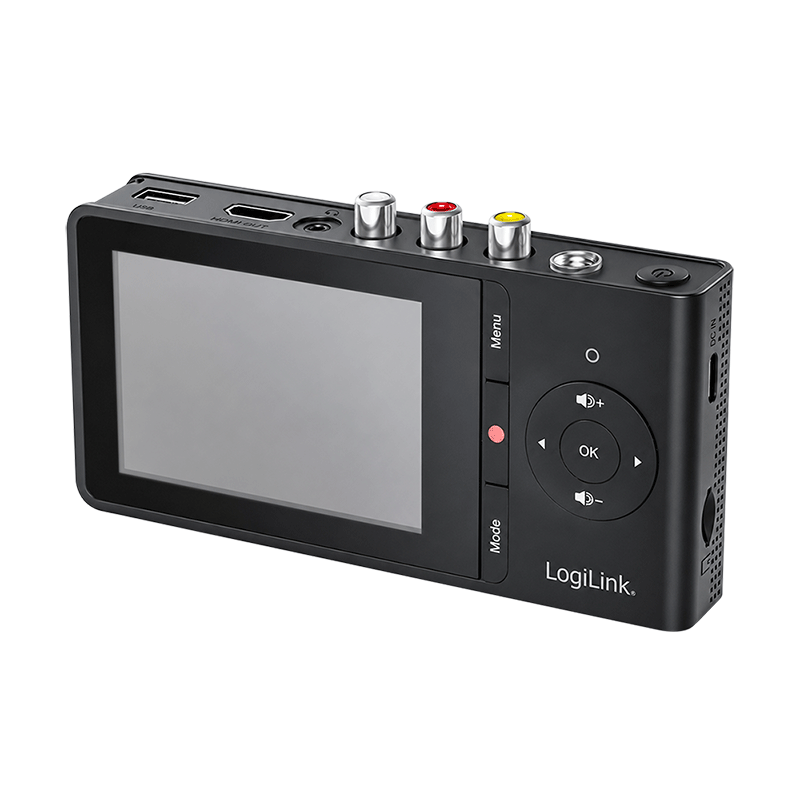

The LogiLink UA0472 is a standalone video capture box for preserving old VHS, Hi8 and camcorder tapes, as well as games console footage, in digital form without a computer, software or drivers. Connect a VCR or camcorder to the RCA or S-Video input, and the built-in H.264 hardware encoder records video and audio as an MP4 file directly onto a USB flash drive or microSD card. Monitor the recording on the 3.5" display or on a TV via the HDMI output, and listen to the audio via the 3.5 mm headphone jack. The MP4 files play on PCs, Macs, smartphones, tablets and TVs.
Features
- Analogue video to digital without a computer
- Records to MP4 (H.264) on USB flash drive or microSD card
- Video inputs: RCA (composite, CVBS) and S-Video, stereo audio via RCA
- 3.5" LCD display for preview and playback
- HDMI output to an external monitor or TV, up to 1280 × 720 / 60 Hz
- 3.5 mm headphone output
- Compact and portable, powered via USB-C
Technical specifications
- Interfaces: USB-A (storage), HDMI output, RCA, S-Video, microSD card slot, USB-C (power), 3.5 mm jack
- USB standard: USB 2.0
- Recording resolution: PAL 720 × 576i/p 50 Hz, NTSC 720 × 480i/p and 640 × 480i/p 60 Hz
- Recording format: MP4 (H.264)
- HDMI output resolution: up to 1280 × 720 / 60 Hz
- File systems: FAT, FAT32, NTFS and exFAT
- File size: max. 4 GB per file
- Storage: USB drive and microSD card up to 512 GB
- Power: DC 5 V / 1 A, 5 W max.
- Operating temperature: 0…+45 °C, humidity 25–60% RH, non-condensing
- Housing: ABS, black
- Dimensions: 14.6 × 6.9 × 2.2 cm
- Weight: 153 g
Package contents
- 1 × video capture box
- 1 × AV cable (1 m)
- 1 × USB-C power cable (1 m)
- 1 × power adapter
- 1 × user manual
Please note
- The device records only from analogue RCA or S-Video sources. The HDMI port is an output for a display, not a recording input.
- Recording is in SD resolution (PAL 720 × 576), matching the resolution of VHS and Hi8 tapes; 720p refers to the HDMI output.
- External SSDs and hard drives are not compatible; use a USB flash drive or microSD card.
- USB flash drive and microSD card are not included.
