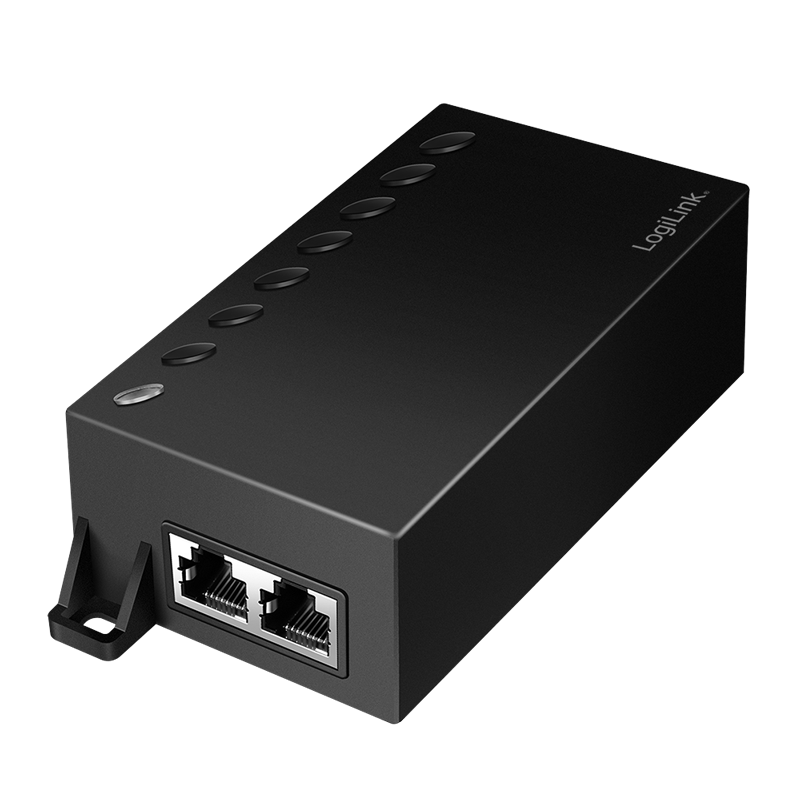

The LogiLink POE007 is an active Gigabit PoE++ injector that delivers both power and data to a PoE device over a single Cat5e, Cat6 or Cat6A network cable up to 100 metres away. The injector connects between a standard non-PoE switch or router and the PoE device. It detects the PoE device automatically and only supplies power to standard-compliant devices, so ordinary network equipment is not damaged. Ideal for IP cameras, PTZ cameras, Wi-Fi access points and IP phones in locations without a power socket.
Features
- IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3bt Type 3 (PoE++)
- Up to 60 W from the injector, up to 51 W at the PoE device
- Gigabit Ethernet 10/100/1000 Mbit/s, full duplex
- Automatic PoE device detection, protection of non-PoE devices
- Over-current, over-voltage and overload protection
- Built-in power supply, plug and play
- Wall mountable
Technical specifications
- Standards: IEEE 802.3af/at/bt, 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T
- Ports: 1 × RJ45 LAN (data), 1 × RJ45 PoE (data and power)
- Input: 230 V AC, 50/60 Hz, 1 A
- Output voltage: 54 V
- Output power: up to 60 W
- Power pins: 1/2 (−), 3/6 (+), 4/5 (+), 7/8 (−)
- LED indicators: green = AC power, blue = power and data output
- Range: up to 100 m
- Operating temperature: 0…+40 °C, humidity 10–90% RH, non-condensing
- Housing: ABS, black
- Dimensions: 13.8 × 6.3 × 3.4 cm
- Weight: 200 g
Package contents
- 1 × PoE++ injector
- 1 × power cable (1.5 m)
- 1 × user manual
Please note
- Network cables are not included.
- The injector is not a network switch; it adds power to a single network link.
