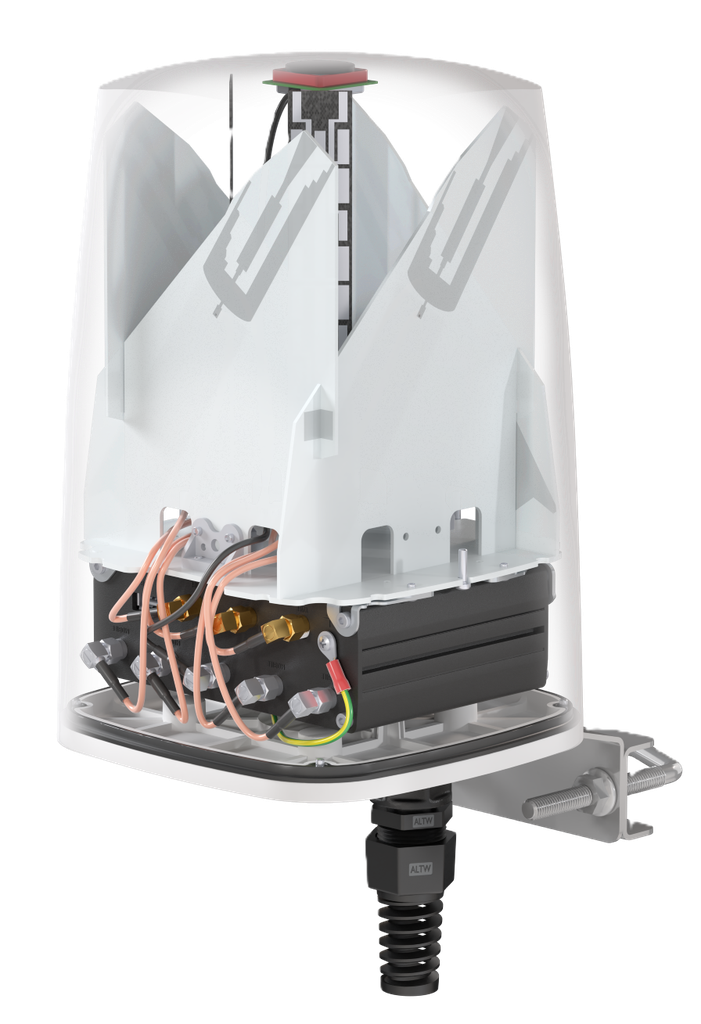

QuWireless QuSpot C50 (AC50S) combines an outdoor enclosure and omnidirectional antennas in one unit. Installing the router inside the enclosure close to the antennas reduces cable losses. Suitable for fixed installations, boats and motorhomes.
Compatibility and installation
- Compatible routers: Teltonika RUTC40, RUTC42 and RUTC50.
- Wall or pole mounting; pole diameter 25–66 mm. RJ45 feedthrough for the Ethernet cable.
5G/4G antennas
- Omnidirectional design, 4 antenna connections for 4 × 4 MIMO operation; 4 × SMA, RG316 cables.
- Frequency ranges and maximum gain: 600–1400 MHz / 2.6 dBi; 1500–3000 MHz / 4.2 dBi; 3000–5000 MHz / 4.4 dBi; 5000–6350 MHz / 2.1 dBi.
- Impedance 50 Ω, vertical polarisation, beamwidth 360° / 25° ±5°. VSWR <2.00, maximum <3.00.
WiFi and GPS antennas
- WiFi: 2400–2500 MHz / 6 dBi and 4700–6000 MHz / 7.5 dBi; 3 × RP-SMA, RG316 cables. Available WiFi features depend on the router.
- Active GPS: 1560–1610 MHz, right-hand circular polarisation (RHCP), 1 × SMA, RG174 cable.
Enclosure specifications
- IP68 rating according to the manufacturer’s technical specifications, when the enclosure and feedthrough are installed as instructed.
- Dimensions 160 × 160 × 240 mm; weight 1.5 kg. Materials: ABS, aluminium and PTFE.
- Operating temperature −40…+75 °C. Recommended enclosure tightening torque 0.5–0.7 Nm.
Before ordering
Router sold separately. RUTC50 supports passive PoE only from production batch 7 onwards. Check your router’s batch number and power requirements before installation.
Manufacturer’s product information and installation instructions
