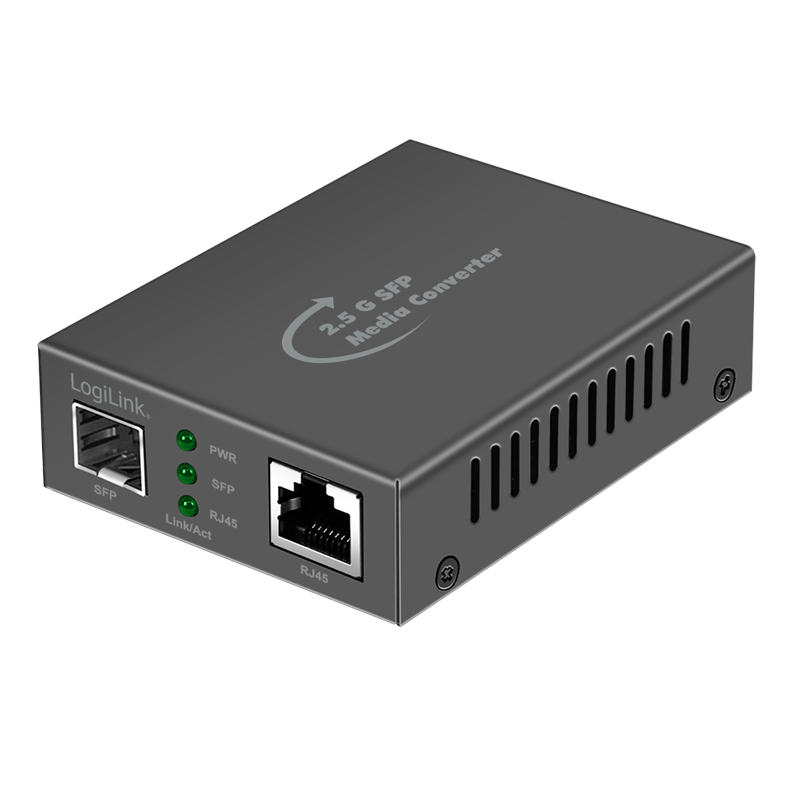

LogiLink Professional NMC002 is a standalone 2.5 Gbps media converter that converts the Ethernet signal from twisted-pair cable to fibre. It lets you extend an existing network with a fibre link without renewing the entire network infrastructure, for example between buildings or when copper cable length is not sufficient. The fibre connection is made with an interchangeable 2.5GBASE-X SFP module.
Features
- Compact metal housing with ventilation on both sides
- Auto MDI/MDI-X and automatic full/half duplex detection
- Automatic address learning and address aging
- Works with single-mode or multimode SFP modules
- LED indicators: PWR, SFP Link/Act, RJ45 Link/Act
- External power adapter included
Technical specifications
- RJ45 port: 1 × 2.5G/1G/100M, auto MDI/MDI-X, auto negotiation
- Fibre interface: 1 × 2.5GBASE-X SFP slot
- Standards: IEEE 802.3u, 802.3ab, 802.3bz, 802.3x
- Power supply: external adapter 5 V DC, max. 1 A
- Power consumption: max. 2 W
- Dimensions: 93.5 × 70.5 × 26 mm
- Weight: 124 g
- Installation: desktop or media converter chassis
- Operating temperature: 0–55 °C
- Operating humidity: 20–80% RH, non-condensing
Compatibility
- LogiLink 2.5 Gbps SFP modules SFP005 and SFP006
- 2.5GBASE-X SFP modules
Package contents
- 1 × media converter
- 1 × power adapter
- 1 × user manual
Please note
- The SFP module is not included; choose it according to fibre type and distance.
- The reach depends on the SFP module used.
