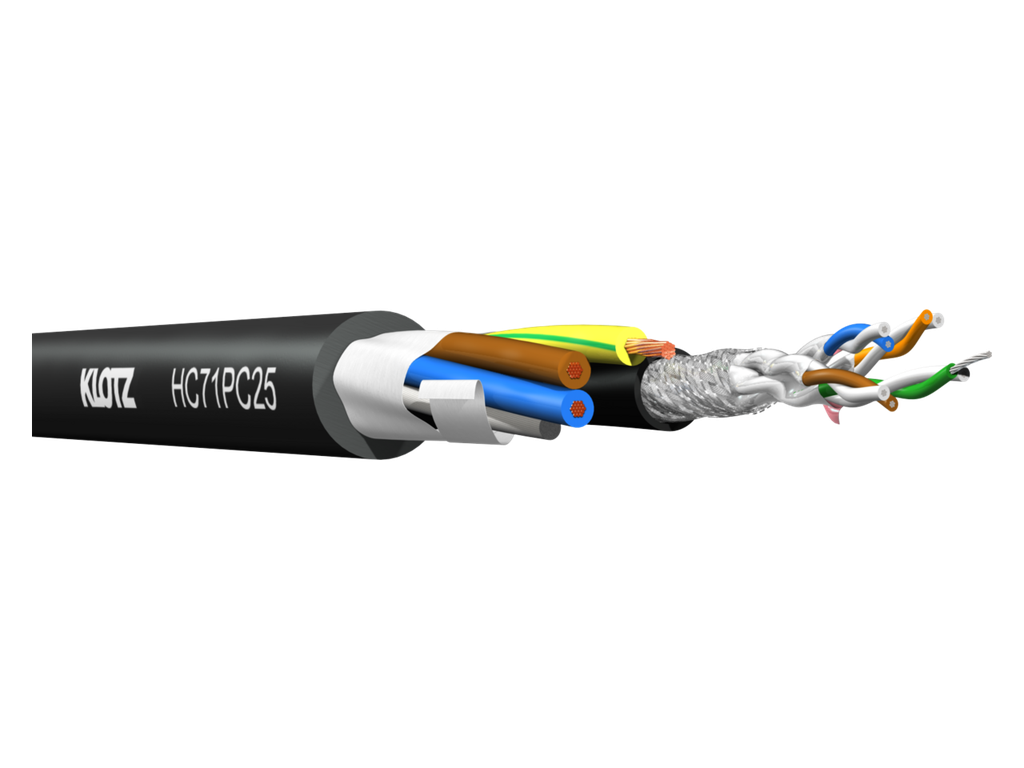

Hybrid cable CAT7 + 3 × 2.5 mm² power, black PVC
Klotz
KLOTZ HC71PC25 combines data, control or audio signals and power in one professional cable for installation and event applications.
- 1 × CAT7 S/FTP -verkkolinja
- Power: 3 × 2.5 mm²
- Outer jacket: black PVC
SKU :
HC71PC25Category :
Digital & Analogue AV Cableshybrid
| twisting: CAT7 patch cable + 1 power cable + tracers |
| taping: fleece |
| outer jacket: PVC |
| min. bending radius: 10x overall diameter |
| emperature range: |
| mobile use: -30°C / +70°C |
| installed: -30°C / +70°C |
| CE conformity: acc. to EU directivo LVD 2014/35/EU |
| no hazardous substances: acc. to EU directivo RoHS 2011/65/EU from 08.06.2011 |
| flame retardancy: flame retardant acc. to IEC 60332-1-2 |
data cable
| type: CAT7 patch S/FTP |
| conductor: stranded tinned copper, AWG 26/7 |
| insulation: foam-skin PE |
| core arrangement: 4 pairs twisted |
| shielding: AL/PET foil + tinned copper braid |
| outer jacket: PVC |
| conductor resistance: 149 Ω/km |
| capacitance: 45 pF/m |
| characteristic impedance: 100 Ω ± 15% |
| nom. attenuation [dB/100m]: |
| 10 MHz: 9.0 |
| 100 MHz: 29.5 |
| 600 MHz: 77.0 |
power cable
| conductor: stranded bare copper, fine-wired acc. to IEC 60228, class 5 |
| cond. cross section: 3 x 2.5 mm² |
| insulation: PVC |
| no. of cores: 3 |
| conductor resistance: 13 Ω/km |
| insulation resistance: > 0,01 MΩ x km |
| max. operating voltage: 300 V |
| test voltage: 2000 V |
maximum transmission range (device-to-device)
| 100Base-T (100 Mbit Ethernet): 60 m |
| 1000Base-T (Gbit Ethernet): 60 m |
| 10GBase-T (10 Gbit Ethernet): 60 m |
| General | |
|---|---|
| Brand | Klotz |
| poistetut | |
| Color – DO NOT USE | Musta |
| Tekniset tiedot | |
| Color | Black |
| Category | CAT7 |
