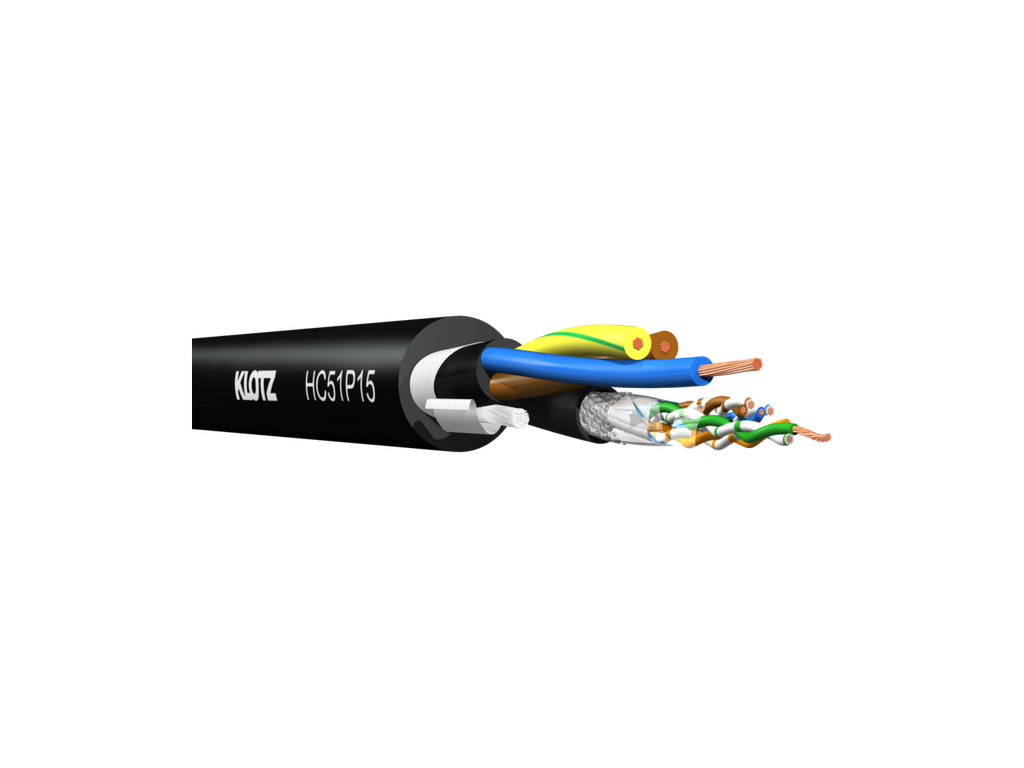

Hybrid cable CAT5e + 3 × 1.5 mm² power, black PVC
Klotz
KLOTZ HC51P15 combines data, control or audio signals and power in one professional cable for installation and event applications.
- 1 × CAT5e-verkkolinja
- Power: 3 × 1.5 mm²
- Outer diameter: approximately 15 mm
- Outer jacket: black PVC
SKU :
HC51P15Category :
Digital & Analogue AV Cableshybrid
| twisting: 1 CAT5e patch cable + 1 power cable + tracers |
| taping: fleece |
| outer jacket: PVC |
| min. bending radius: 10x overall diameter |
| emperature range: |
| mobile use: -30°C / +75°C |
| installed: 0°C / +50°C |
| CE conformity: acc. to EU directivo LVD 2006/95/EG |
| no hazardous substances: acc. to EU directivo RoHS 2011/65/EU from 08.06.2011 |
| flame retardancy: flame retardant acc. to IEC 60332-1-2 |
| heat of combustion: 3620 MJ/m |
data cable
| type: CAT5 patch SF/UTP |
| conductor: stranded bare copper, AWG 26/7 |
| insulation: foam-skin PE |
| core arrangement: 4 pairs twisted |
| shielding: AL/PET foil + tinned copper braid (>85% coverage) |
| outer jacket: PVC |
| conductor resistance: 140 Ω/km |
| capacitance: 47 pF/m |
| characteristic impedance: 100 Ω ± 15% |
| nom. attenuation [dB/100m]: |
| 10 MHz: 8.4 |
| 100 MHz: 29.9 |
power cable
| conductor: stranded bare copper, fine-wired acc. to IEC 60228, class 5 |
| cond. cross section: 3 x 1.5 mm² |
| insulation: polyethylene (PE) |
| no. of cores: 3 |
| jacket: PVC, black, Ø 6.7 mm |
| conductor resistance: 13 Ω/km |
| insulation resistance: > 0,01 MΩ x km |
| max. operating voltage: 250 V |
| test voltage: 2000 V |
