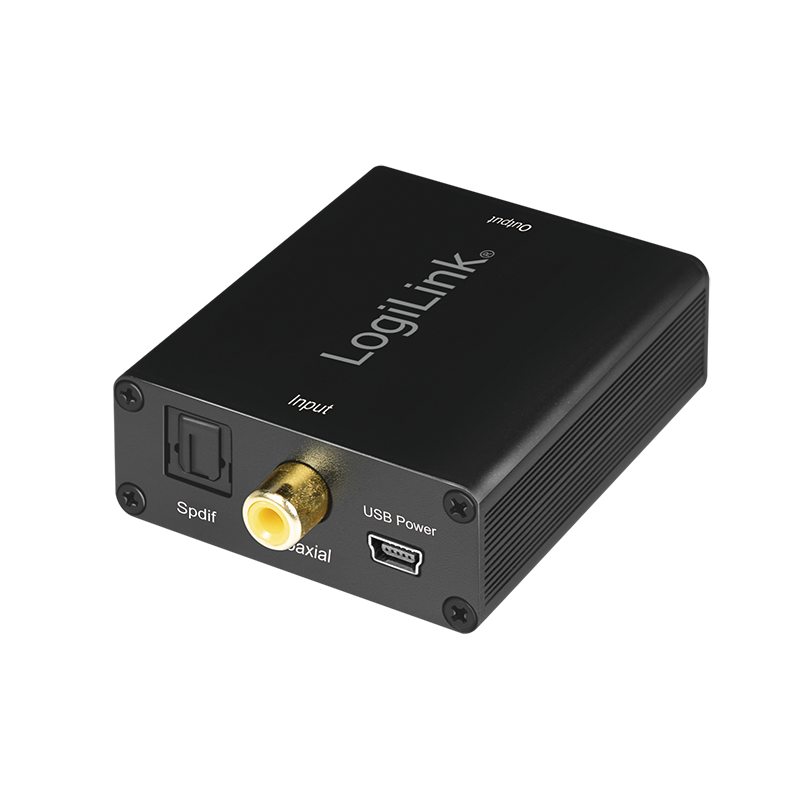

The LogiLink CA0101 is a D/A audio converter that connects a device's digital audio output to an analogue amplifier, active speakers or headphones. It accepts an optical TOSLINK or coaxial S/PDIF signal and converts it into analogue left and right stereo audio. Outputs are RCA (L/R) plus a 3.5 mm jack, for example for headphones. Suitable for use with a TV, Blu-ray or DVD player or games console.
Features
- Inputs: TOSLINK (optical) and coaxial (RCA)
- Outputs: 2 × RCA (L/R) and 1 × 3.5 mm jack
- 24-bit S/PDIF signal on left and right channels
- Sampling rates 32, 44.1, 48 and 96 kHz
- Transmission free from electromagnetic noise
- LED indicator, easy to install and operate
- Metal housing
Technical specifications
- Input connectors: 1 × TOSLINK, 1 × RCA (coaxial)
- Output connectors: 2 × RCA (L/R), 1 × 3.5 mm
- Sampling rate: 32 / 44.1 / 48 / 96 kHz
- Power: external power supply DC 5 V / 1 A (included), USB power port
- Power consumption: 0.5 W max.
- Operating temperature: 0…+70 °C, humidity 10–85% RH, non-condensing
- Storage temperature: -10…+80 °C, humidity 5–90% RH, non-condensing
- Dimensions: 73 × 54 × 20 mm
- Weight: 65 g
Package contents
- 1 × audio converter
- 1 × power supply
- 1 × user manual
Please note
- The converter handles 2-channel PCM stereo audio. Set the source device's digital audio output to PCM or stereo; it does not decode Dolby Digital or DTS.
- Optical and coaxial cables are not included.
