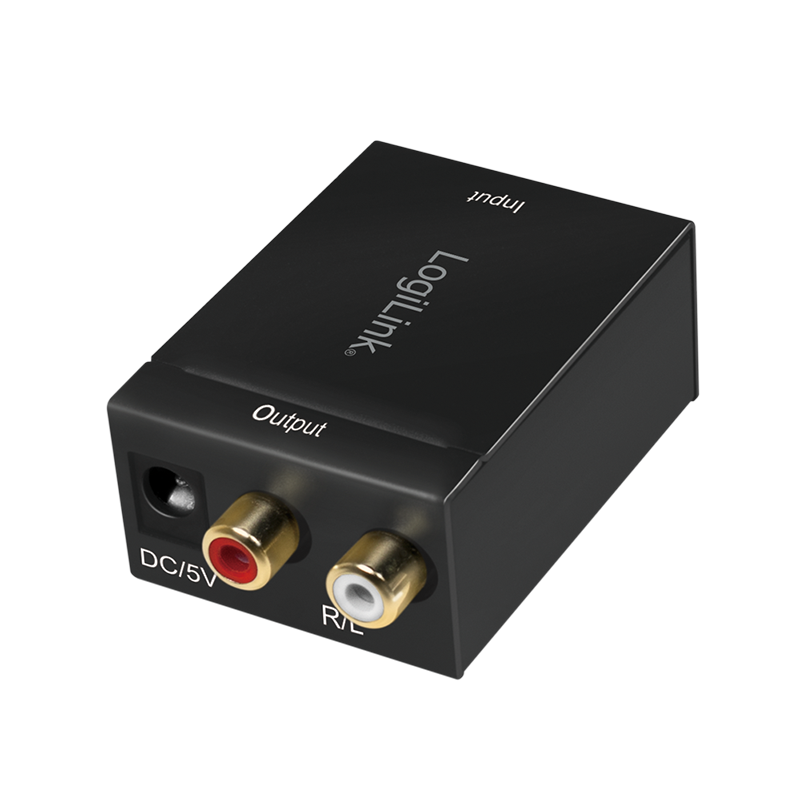

The LogiLink CA0100 is a compact D/A audio converter that connects a device's digital audio output to an analogue amplifier or active speakers. It accepts an optical TOSLINK or coaxial S/PDIF signal and converts it into analogue left and right stereo audio on RCA outputs. Suitable for use with a TV, Blu-ray or DVD player.
Features
- Inputs: TOSLINK (optical) and coaxial (RCA)
- Output: 2 × RCA (L/R)
- 24-bit S/PDIF signal on left and right channels
- Sampling rates 32, 44.1, 48 and 96 kHz
- Uncompressed LPCM 2.0 audio
- Transmission free from electromagnetic noise
- LED indicator, easy to install and operate
- Metal housing
Technical specifications
- Input connectors: 1 × TOSLINK (S/PDIF, optical), 1 × digital coaxial (RCA, female)
- Output connectors: 2 × RCA (L/R)
- Sampling rate: 32 / 44.1 / 48 / 96 kHz
- Power: DC 5 V / 1 A (5 W max.)
- Power consumption: 0.5 W max.
- Operating temperature: 0…+70 °C, humidity 10–85% RH, non-condensing
- Dimensions: 5.1 × 4.1 × 2.6 cm
- Weight: 70 g
Power supply
- Input: 100–240 V, 50/60 Hz, 0.2 A max.
- Output: 5 V / 1 A, 5 W
- DC plug: 5.5 × 2.1 mm
- Cable length: 1.2 m
Package contents
- 1 × audio converter
- 1 × power supply
- 1 × user manual
Please note
- The converter handles 2-channel PCM stereo audio. Set the source device's digital audio output to PCM or stereo; it does not decode Dolby Digital or DTS.
- Optical and coaxial cables are not included.
