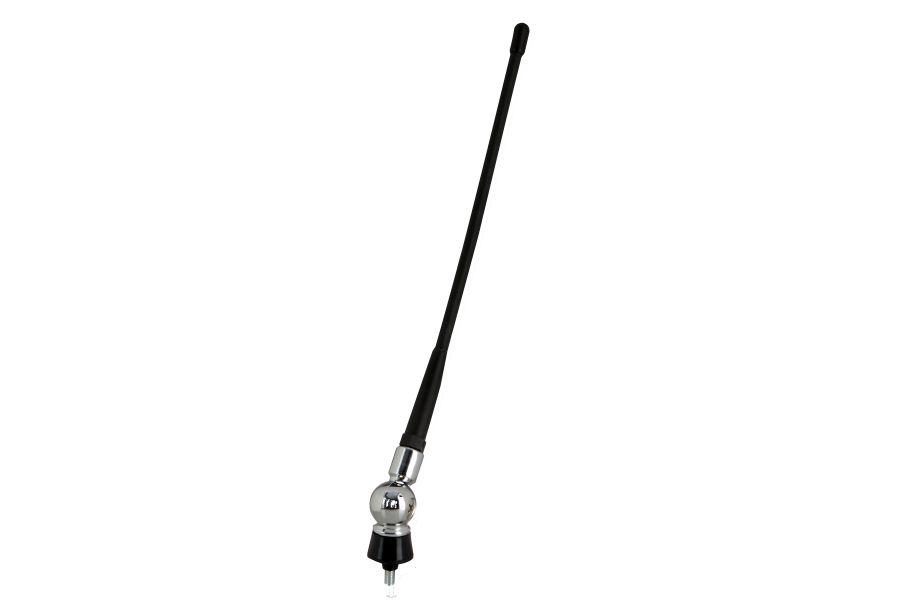

AM/FM vehicle antenna with a flexible 240 mm rod and spherical base. The heavy-duty FLEXI model includes a 1.5 m RG 58 cable and DIN male connector.
Construction and installation
- Rod length: 240 mm
- Rod thread: M6
- Ingress protection: IP68
- Mounting hole: Ø 9 mm
Electrical specifications
- Frequency range: AM 525–1710 kHz; FM 87,5–108 MHz
- Impedance: 50 Ω
- Power supply: passive, no separate power supply
Connections and cable
- Connector: DIN male
- Cable: RG 58, 1,5 m
Installation and delivery
DAB reception requires a separate active or passive AM/FM–DAB splitter. DAB-ready does not mean a separate DAB connection is provided.
Source: MTA Product Catalogue Antenna Systems v2.1, catalogue page 12.
