Masthead amplifier UHF 10-34 dB LTE700 +Power supply 24 V, RED
Johansson

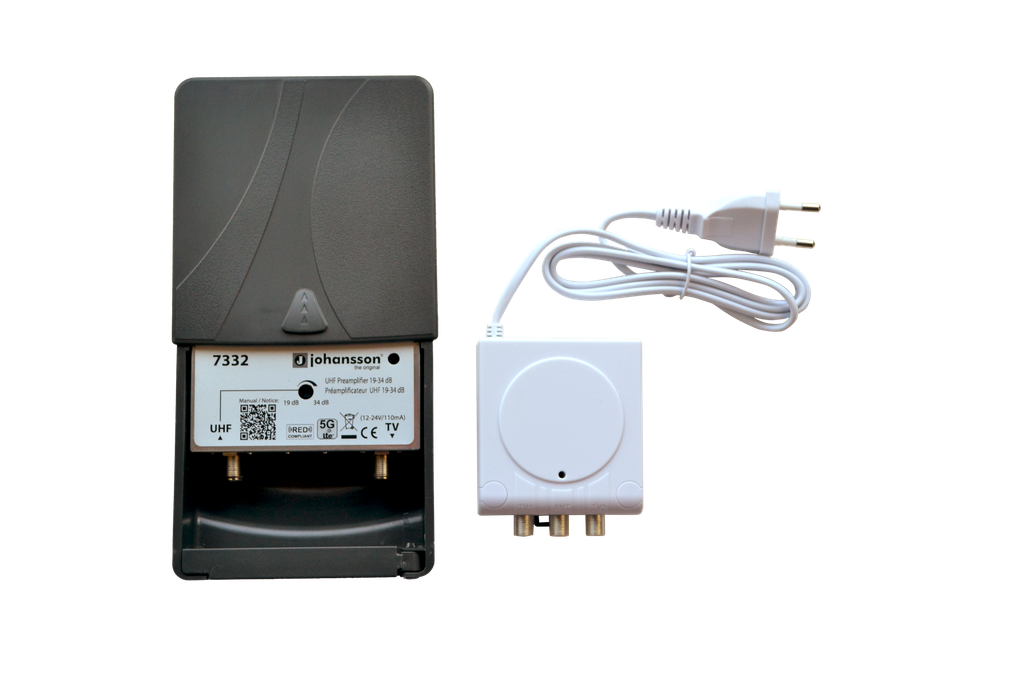

Johansson KIT7332 is a UHF masthead amplifier kit for terrestrial TV reception. It includes a 7332 amplifier and a J2436 power supply.
Masthead amplifier: 470–694 MHz (channels 21–48), adjustable gain of 19–34 dB, one input and one output, 5G rejection, 2 dB noise figure and power indicator. Operating voltage: 12–24 VDC.
Power supply: stabilised 24 VDC / 150 mA, two outputs, short-circuit protection and LED indicator. Wall or DIN-rail mounting.
Electrical number :
7332 masthead amplifier specifications
Frequency range: 470–694 MHz (channels 21–48)
Adjustable gain: 19–34 dB
Noise figure: 2 dB
Input level: 90 dBµV
Output level: 110 dBµV
Operating voltage: 12–24 VDC
Current consumption: 110 mA / 12 V; 60 mA / 24 V
Dimensions: 120 × 115 × 50 mm
J2436 power supply specifications
Output voltage and current: 24 VDC / 150 mA
Outputs: 2
Frequency range: 40–862 MHz
Insertion loss: 4–5 dB
Isolation between outputs: 10 dB
Mains supply: 100–230 V~ / 50 Hz
Power consumption: 4.6 W; efficiency level VI
Dimensions: 95 × 76 × 35 mm
| General | |
|---|---|
| Brand | Johansson |
| Tekniset tiedot | |
| Connector 1 | F |
| Connector 2 | - F |
| Polarity | Female |
| Active Component | Vahvistin kitit |
