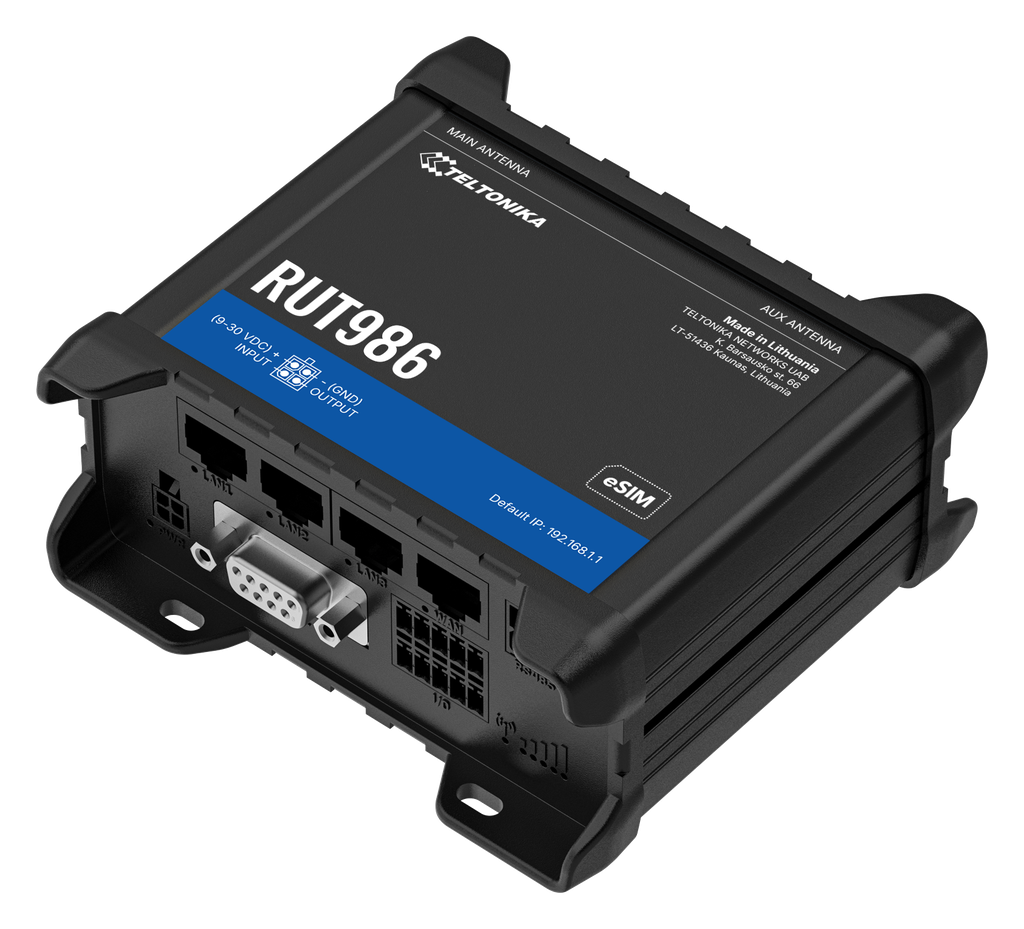

Teltonika RUT986 connects mobile, wired Ethernet and Wi-Fi networks for business and IoT applications. RutOS provides connection monitoring, a firewall and VPN connectivity. The global Telit LTE Cat 4 modem supports international deployments.
Connectivity and management
- 4G LTE Cat 4: up to 150 Mbps download and 50 Mbps upload. Global Telit modem.
- Wi-Fi 4 (802.11b/g/n), 2.4 GHz; 4 × 10/100 Mbps Ethernet (1 WAN and 3 LAN).
- 2 × Mini SIM (2FF). eSIM: up to 7 profiles; data plans are not included.
- WAN failover and load balancing; WireGuard, OpenVPN and IPsec VPN. RMS remote management support.
- RS232 (DB9, RTS/CTS), full- and half-duplex RS485, USB 2.0, microSD (up to 2 TB), GNSS and multiple I/O interfaces. Modbus, DNP3 and OPC UA support.
Technical specifications
- 9–30 VDC, 4-pin connector. Passive PoE via LAN1, mode B; not compatible with IEEE 802.3af/at/bt.
- Operating temperature −40 to +65 °C. IP30 protection.
- Dimensions (W × H × D): 110 × 50 × 100 mm. Device weight 294 g. Aluminium housing and plastic panels.
- Mediatek 580 MHz MIPS 24KEc; 128 MB DDR2 RAM and 32 MB Flash. RutOS (OpenWrt-based Linux).
Package and installation
Order code RUT986000000. EU package contents:
- Teltonika RUT986 router
- 9 W EU power supply
- 2 magnetic mobile antennas
- 2 magnetic Wi-Fi antennas
- GNSS antenna
- RS485 and I/O terminal blocks
- 1.5 m Ethernet cable
- SIM adapters
- Quick start guide
DIN rail and wall mounting require a separately purchased mounting kit.
User and installation instructions – Teltonika RUT986 Wiki
Teltonika product catalogue 2025 (PDF)
