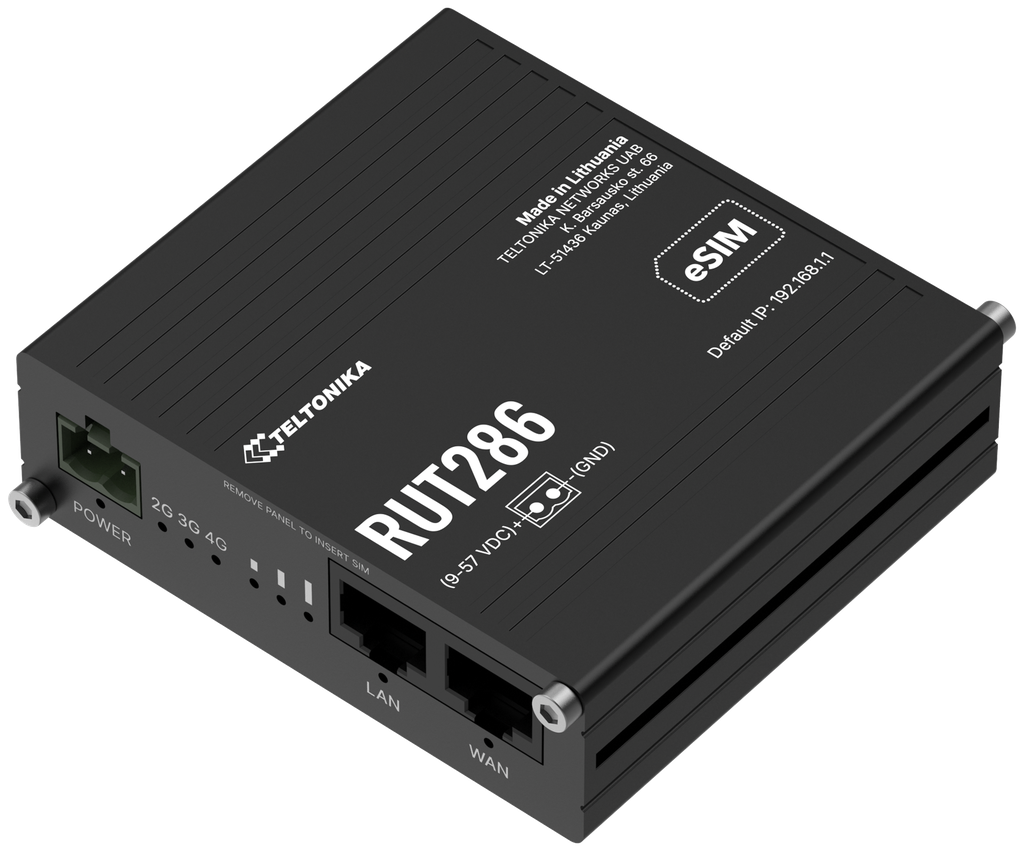

Teltonika RUT286 connects mobile, wired Ethernet and Wi-Fi networks for business and IoT applications. RutOS provides connection monitoring, a firewall and VPN connectivity. The global Telit LTE Cat 4 modem supports international deployments.
Connectivity and management
- 4G LTE Cat 4: up to 150 Mbps download and 50 Mbps upload. Global Telit modem.
- Wi-Fi 4 (802.11b/g/n), 2.4 GHz; 2 × 10/100 Mbps Ethernet (1 WAN and 1 LAN).
- 2 × Mini SIM (2FF). eSIM: up to 7 profiles; data plans are not included.
- WAN failover and load balancing; WireGuard, OpenVPN and IPsec VPN. RMS remote management support.
- RS232 without flow control, half-duplex RS485 (2 wires) and an internal microSD slot (up to 2 TB).
Technical specifications
- 9–57 VDC, 2-pin connector. Active IEEE 802.3af PoE via the LAN port; passive PoE 16–57 VDC, modes A/B.
- Operating temperature −40 to +65 °C. IP30 protection.
- Dimensions (W × H × D): 83 × 25 × 83 mm. Device weight 132 g. Anodised aluminium housing and panels.
- Mediatek 580 MHz MIPS 24KEc; 128 MB DDR2 RAM and 32 MB Flash. RutOS (OpenWrt-based Linux).
Package and installation
Order code RUT286AAAAA0. Standard package contents:
- Teltonika RUT286 router
- 2-pin terminal block
- 2 three-pin connectors
- Hex key
- SIM adapters
- Quick start guide
Supplied without a power supply. Antennas and power supply are purchased separately. DIN rail and wall mounting require a separately purchased mounting kit.
