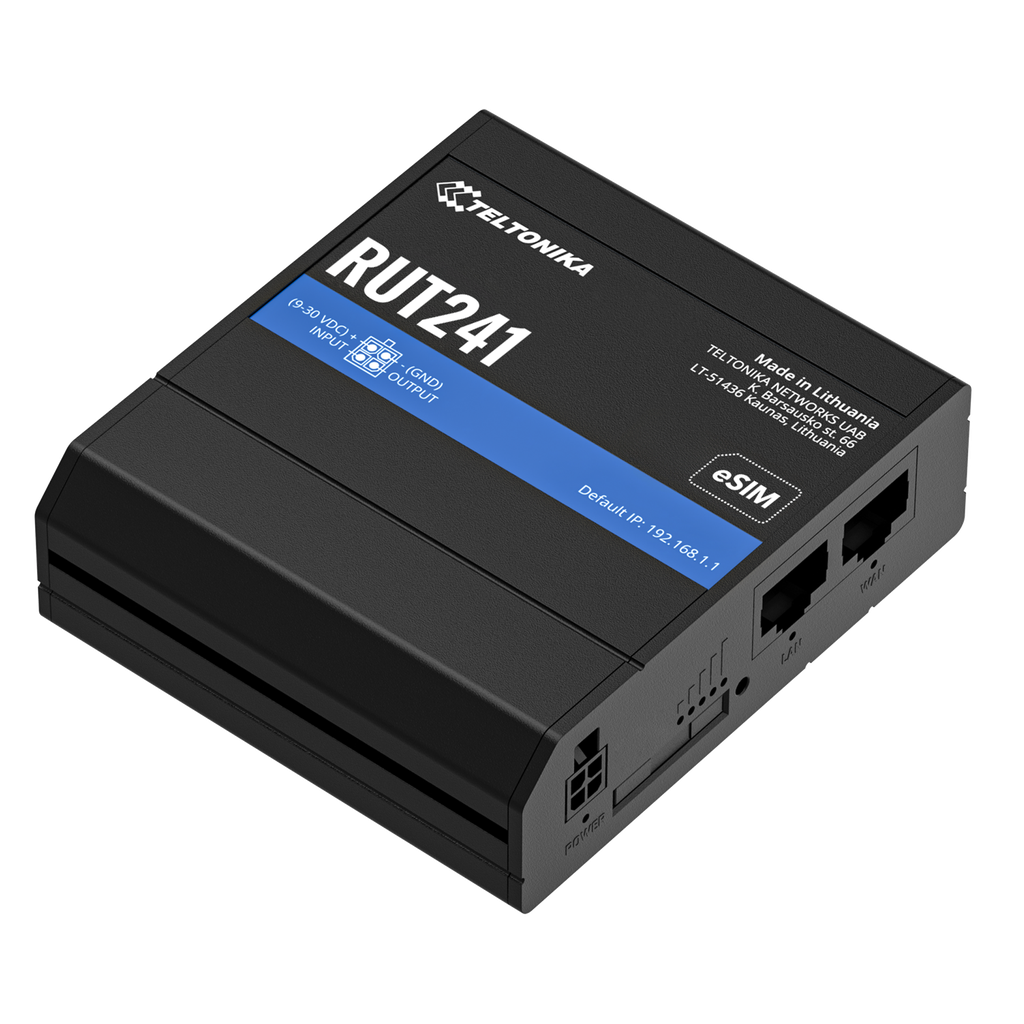

Teltonika RUT241 is a compact industrial 4G router for IoT and M2M connectivity. LTE CAT4, Wi-Fi 4 and two Ethernet ports provide wireless and wired connections. RutOS supports automatic WAN failover, VPN connections and RMS remote management.
Mobile connectivity and eSIM
- 4G LTE CAT4: up to 150 Mbit/s download and 50 Mbit/s upload; also supports 3G and 2G.
- 1 Mini-SIM slot (2FF) and built-in eSIM, SGP.22; up to 7 eSIM profiles.
- Manage eSIM profiles through WebUI and RMS. Mobile data plans are not included.
EU and Global variants
- eSIM EU, RUT241210000: LTE FDD B1/B3/B5/B7/B8/B20 and TDD B40; 3G B1/B5/B8; 2G B3/B8. EU power supply.
- eSIM Global, RUT241233000: LTE FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 and TDD B38/B39/B40/B41; 3G B1/B2/B4/B5/B6/B8/B19; 2G B2/B3/B5/B8. Universal power supply.
Choose the version using the variant selector. The EU variant RUT241210000 does not support LTE band B28; the Global variant does. Check the operator bands and approvals for your deployment region before choosing.
Interfaces and networking features
- 2 × RJ45 Ethernet 10/100 Mbit/s: 1 WAN and 1 LAN.
- Wi-Fi 4 (802.11b/g/n), 2.4 GHz; access point, station mode and hotspot.
- 2 × SMA mobile antenna connectors and 1 × RP-SMA Wi-Fi antenna connector.
- 1 digital input and 1 digital open-collector output on the power connector; output up to 30 V / 300 mA.
- Automatic WAN failover, firewall and VPN: for example OpenVPN, IPsec and WireGuard. Supports RMS remote management.
Technical specifications
- Power input: 9–30 V DC, 4-pin industrial DC connector.
- Passive PoE input through LAN1, Mode B, 9–30 V DC. Not compatible with IEEE 802.3af/at/bt standards.
- Maximum power consumption: less than 6.5 W.
- Dimensions (W × H × D): 83 × 25 × 74 mm; product weight 125 g.
- Aluminium housing with plastic panels; IP30.
- Operating temperature: −40…+75 °C; relative humidity 10–90%, non-condensing.
Package and installation
- Order codes: RUT241210000 / Standard package with EU PSU; RUT241233000 / Standard package with Universal PSU.
- RUT241 router and power supply matching the selected version.
- 2 mobile antennas, SMA male; 1 Wi-Fi antenna, RP-SMA male.
- 1.5 m Ethernet cable, SIM adapter kit, Quick Start Guide and packaging box.
DIN rail, wall and flat-surface mounting require a separately purchased mounting kit. A mobile data plan and any RMS services are purchased separately.
