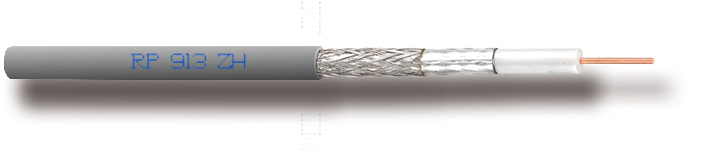

RG6 Dca Ø6.8 mm Class-A++ Cu+Al 75 ohm grey K250
Cavel
Double-shielded 75 Ω RG6 coaxial cable for signal transmission in aerial and cable networks.
- Construction: Ø 6.6 mm · LSZH · grey
- Reaction to fire: Dca-s2,d2,a1
- Supply: sold by the metre; 250 m reel
Electrical number :
Cavel RP913ZHK250 – technical data and applications
Double-shielded 75 Ω RG6 coaxial cable for signal transmission in aerial and cable networks.
Construction and electrical properties
- Inner conductor diameter: 1.13 mm
- Foil layer diameter: 4.90 mm; diameter over braid: 5.30 mm
- Approximate outer diameter: 6.6 mm
- Nominal impedance: 75 Ω
- Shielding layers: 2
- Inner conductor: solid bare copper
- Insulation: foamed PE
- Shielding: aluminium/polyester foil and tinned copper braid
- Sheath: LSZH; colour: grey (RAL 7001)
Installation and operating conditions
- Operating temperature, fixed installation: -25 - 80 °C
- Temperature during installation and handling: -5 - 80 °C
- Minimum bending radius, fixed installation: 35 mm
- Minimum bending radius, flexible installation: 70 mm
- Minimum bending radius, guided movement: 70 mm
- Suitable for underground installation: no
Fire classification and supply information
- Reaction to fire (EN 13501-6): Dca-s2,d2,a1
- Supply: sold by the metre; 250 m reel
- Weight: 0.046 kg/m
- Country of origin: Italy
- Finnish electrical number: 0212811
Product information and documents
Declaration of Performance (DoP)
Attenuation and additional data
Attenuation at +20 °C (dB / 100 m): 5 MHz: 1.40; 10 MHz: 1.90; 30 MHz: 3.00; 50 MHz: 4.00; 200 MHz: 8.10; 300 MHz: 9.90; 470 MHz: 12.60; 862 MHz: 17.30; 1000 MHz: 18.70; 1750 MHz: 25.70; 2150 MHz: 28.80; 2400 MHz: 30.60; 3000 MHz: 34.10.
- Capacitance: 52 ± 2 pF/m; velocity factor: 85 %
- Inner conductor resistance: 18 Ω/km; outer conductor resistance: 10.70 Ω/km; loop resistance: 28.70 Ω/km
- Maximum tensile force: 150 N; braid coverage: 72 %
| General | |
|---|---|
| Brand | Cavel |
| Tekniset tiedot | |
| Color | Grey |
| Material | PVC |
| Impedance | 75 ohm |
| Cable Outer Diameter | Ø 6.6 mm |
| Cable Type | RG6 |
| CPR Classification | Dca |
| Conductor Type | Solid conductor |
