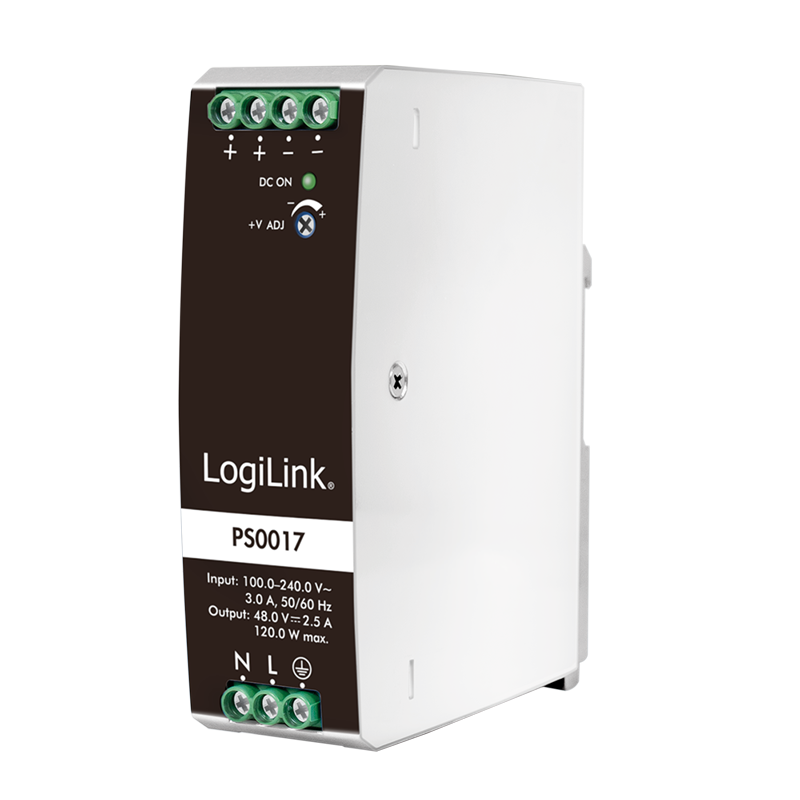

LogiLink Professional PS0017 is an industrial-grade switching power supply for TS35 DIN rail. It converts 100–240 V mains voltage to 48 V / 2.5 A (120 W) DC, and the output voltage can be fine-tuned with the ADJ potentiometer on the front panel. Short-circuit, overcurrent and overvoltage protection, high efficiency and low heat dissipation make it suitable for permanent power supply of automation, network and surveillance equipment in distribution boards and enclosures.
Features
- Wide input range 100–240 V AC, also accepts DC input on the same terminals
- Adjustable output voltage (ADJ)
- Short-circuit, overcurrent and overvoltage protection
- Input/output isolation voltage up to 4000 V AC
- Overvoltage category III (EN 61558-1)
- Low standby power consumption, high efficiency
- Low ripple and noise
- Ultra-slim design for small enclosures and narrow installation spaces
- Mounting on DIN rail TS35 × 7.5 / TS35 × 15
- Safety: UL508
Technical specifications
- Input voltage: 100–240 V AC (DC input also possible)
- Output: 48 V DC, 2.5 A, 120 W
- Operating temperature: -20…+60 °C
- Indicator: output status LED
- Connections: screw terminals, 2 × +V, 2 × -V, N, L, PE
- Wire range: input 26–10 AWG (PE 12–10 AWG), output 48 V 18–10 AWG
- Tightening torque: max. 0.79 Nm
- Housing: metal
- Dimensions (W × H × D): 36 × 125 × 100 mm
- Packed weight: 461 g
Package contents
- 1 × DIN rail power supply
- 1 × user manual
Please note
- Installation must only be carried out by a qualified electrician; the device is connected to mains voltage.
- The DIN rail must be connected to protective earth.
