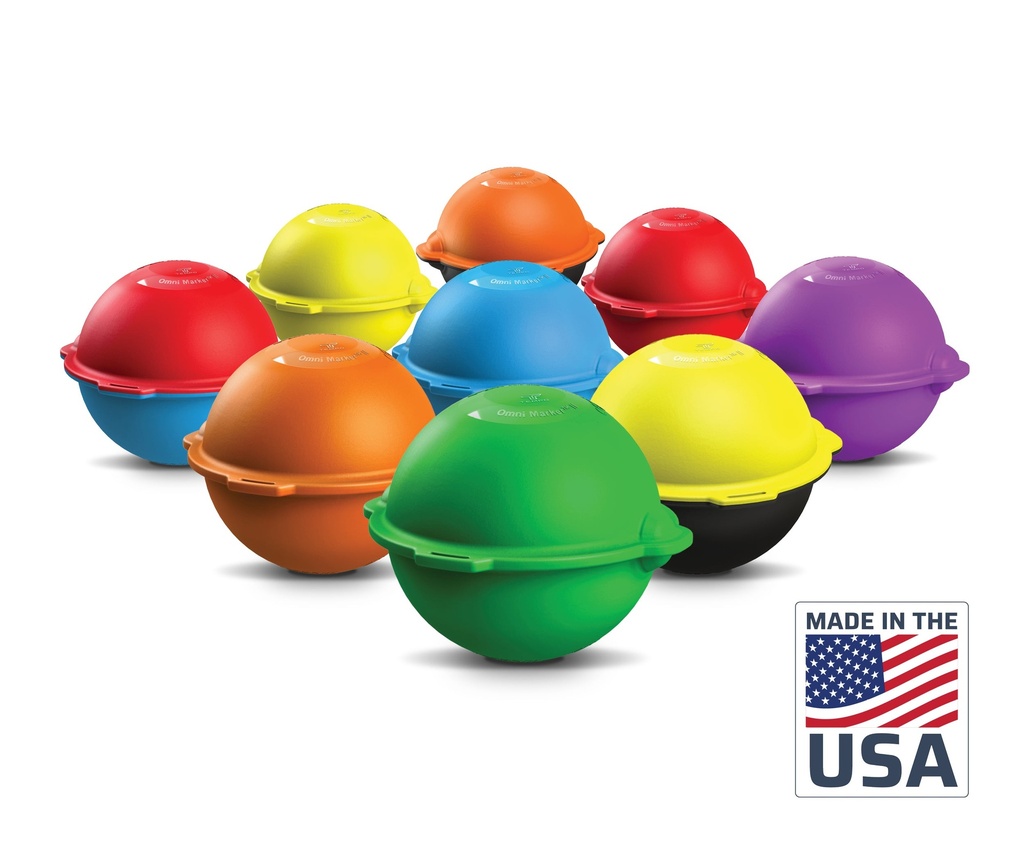

Tempo OmniMarker II is a passive electronic marker ball for marking and locating key points of buried utilities. Inside the ball is a large gimballed coil that automatically orients itself horizontally when buried. This ensures a location “sweet spot” directly above the point of interest, regardless of how the marker lies in the ground.
OmniMarker II uses the industry-standard frequencies and can be detected with any electronic marker locator, such as the Tempo EML150 or EML100. When excited by the locator, the passive circuit produces a precise dipole field directly above and below the marker. It contains no liquids, hazardous chemicals, batteries or active components, so it is safe for the environment and built to last.
Features
- Gimballed coil levels itself automatically, so the ball does not need to be placed level
- Operating depth typically more than 1.5 m in most soil types
- No liquids, hazardous chemicals or batteries
- Durable, reusable HDPE housing, recyclable at end of life
- Strong moulded tie-down loops
- Made in the USA, patents US 10,845,504 and US 10,557,913
Colours and frequencies
- OM-01: purple, general purpose, 66.35 kHz
- OM-02: orange/black, CATV, 77 kHz
- OM-03: yellow, gas, 83 kHz
- OM-04: yellow/black, fibre optic, 92 kHz
- OM-05: orange, telephone, 101.4 kHz
- OM-06: green, sanitary sewer, 121.6 kHz
- OM-07: red/blue, Europower, 134 kHz
- OM-08: blue, water, 145.7 kHz
- OM-09: red, power, 169.8 kHz
On the Tempo EML150 locator, 134 kHz Europower is used in EU mode and 169.8 kHz power when EU mode is switched off.
Applications
Use OmniMarker II to mark and find, for example:
- buried splices and load coils
- buried service drops
- pipe ends and conduit stubs
- road crossings and cable paths
- fibre optic facilities
- manholes under pavement or grade changes
- snow-covered installations
- survey points and repair points
- septic installations and non-metallic lines
Technical specifications
- Type: passive electronic marker (EMS), ball type
- Operating depth: typically more than 1.5 m in most soil types
- Minimum diameter: 100 mm
- Widest measurement (tag to tag): 128 mm
- Weight: 154 g
- Body: high-density polyethylene (HDPE), fusion welded
- Country of origin: USA
Delivery
The price is per marker. The manufacturer packs the markers in boxes of 30.
Compatible locators
Sold separately: the Tempo EML150 locator and other electronic marker locators using the standard frequencies.
