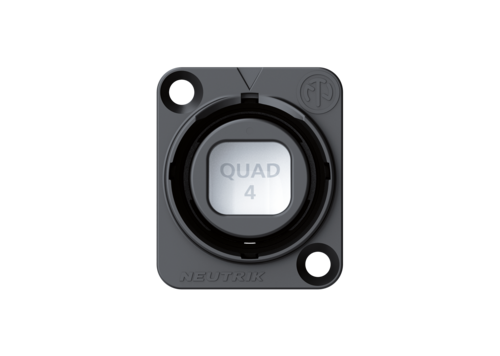

Neutrik NO4FDW-A is a rugged opticalCON QUAD chassis connector for 4-channel fibre optic links. It works as a feed-through: four standard LC connectors plug into the rear, making installation simple and cost-effective. The housing is the standard D size.
Features
- Rugged 4-channel point-to-point fibre optic connection
- Four standard LC ports on the rear
- Automatically closing metal shutter protects against dust and laser radiation, two-component rubber gasket
- Push-Pull locking
- IP65 in mated condition together with an SCDP-* gasket
- Colour coding with SCDP-* gasket according to ANSI/TIA-568.3-D: multimode black, singlemode PC blue, singlemode APC green
Technical data
- Manufacturer: Neutrik
- Model: NO4FDW-A
- Gender: female
- Channels: 4 (LC connectors on the rear)
- Mounting: front mounting, D-size housing
- Locking: Push-Pull
- Insertion loss: < 0.5 dB / connection
- Insertion and withdrawal force: < 45 N
- Lifetime: typically 5000 mating cycles
- Shell: zinc diecast (ZnAl4Cu1), black chromium plating
- Insert: polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
- Operating temperature: −40 °C … +75 °C
- Protection class: IP65 in mated condition with SCDP-* gasket
Please note
LC connectors, panel frames, gaskets and sealing covers are sold separately.
