Combiner filter FM/UHF + FM/UHF for outdoor use, DC pass
Alcad

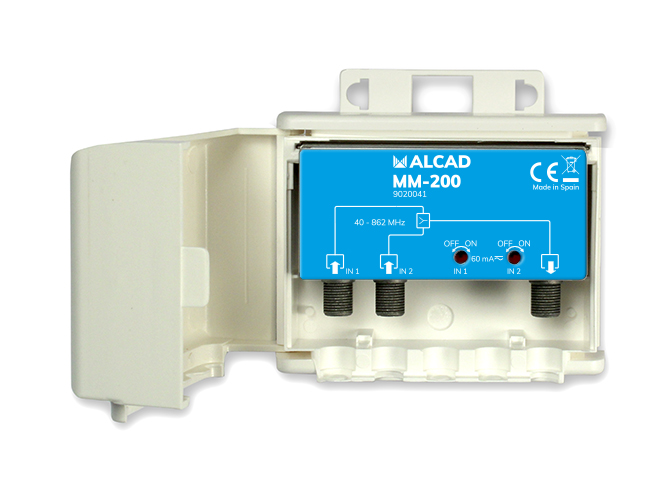

Alcad MM-200 is a mast-mounted broadband combiner that combines the signals of two antennas into one cable. It can also be used as a two-way splitter.
Combiner: 2 inputs, each 40–862 MHz (FM/TV), insertion loss 4.5 dB, isolation between inputs ≥ 20 dB, switchable 60 mA DC pass-through to a preamplifier, F connectors, IP53.
MM-200 combiner technical data
Inputs: 2 (FM/TV); output: 1
Frequency range: 40–862 MHz on both inputs
Insertion loss: 4.5 ±0.8 dB
Isolation between inputs: ≥ 20 dB
DC pass-through: switchable, 60 mA
Connectors: F
Operating temperature: −10…+65 °C
Protection class: IP53
Inputs: 2 (FM/TV); output: 1
Frequency range: 40–862 MHz on both inputs
Insertion loss: 4.5 ±0.8 dB
Isolation between inputs: ≥ 20 dB
DC pass-through: switchable, 60 mA
Connectors: F
Operating temperature: −10…+65 °C
Protection class: IP53
| General | |
|---|---|
| Brand | Alcad |
| Tekniset tiedot | |
| Connector 1 | F |
| Connector 2 | - F |
| Polarity | Female |
MM200_m.pdf
Download
