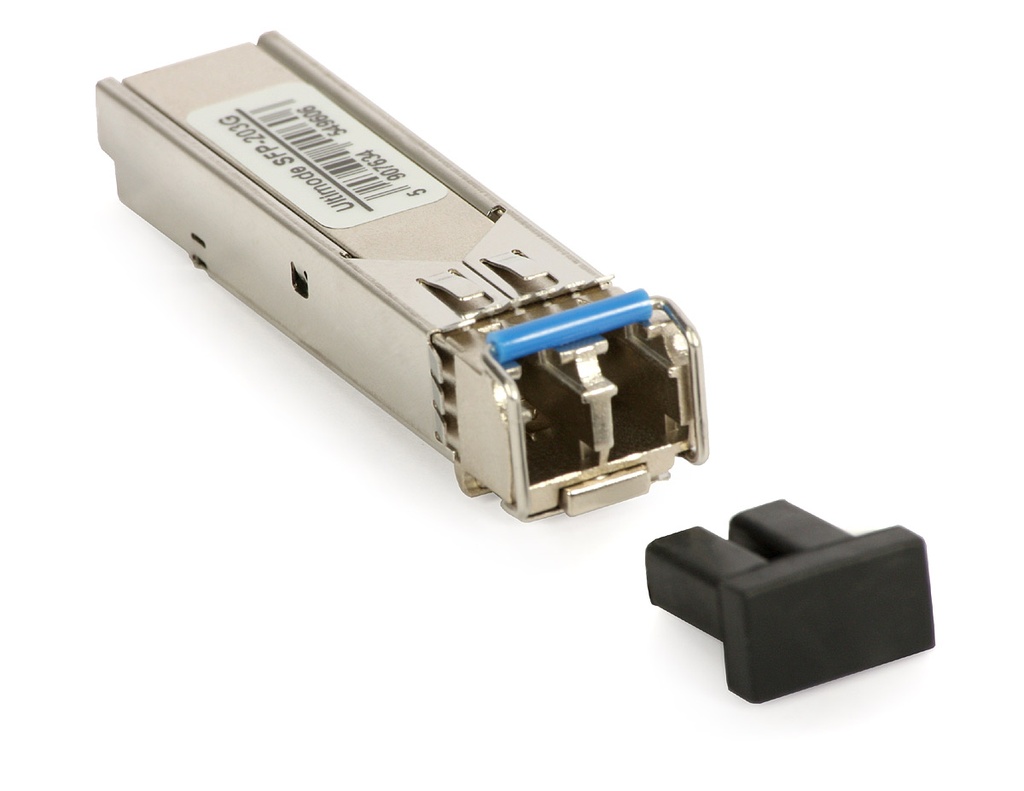

ULTIMODE SFP-203G is a Gigabit fibre module compliant with the SFP (Small Form-factor Pluggable) standard, used to add an optical fibre link to network equipment. The module uses two single-mode fibres (duplex) and LC connectors, whose small size and latch make them suitable for high-density patch panels.
Features
- Duplex transmission over two fibres
- Single-mode fibre (SM), wavelength 1310 nm (Tx/Rx)
- Transmission speed up to 1.25 Gb/s (IEEE 802.3z 1000Base-FX)
- Range up to 20 km
- Optical connector: LC/PC duplex
Specifications
- Module type: SFP
- Transmitter power: −8…−3 dBm
- Receiver sensitivity: better than −22 dBm
- Supply voltage: 3.3 V DC (from the SFP port)
- Operating temperature: 0…+70 °C
Compatibility
Works in the SFP slots of most IEEE 802.3z 1000Base-FX compatible media converters, switches and routers, for example ULTIMODE, TP-Link and Cisco devices. Suitable for example for the ULTIMODE M-1G/SFP media converter (L1301). A separate module is needed at each end of the link.
Please note
- Do not look directly into the fibre port while the module is in use – invisible laser radiation can damage the eye.
