Masthead amplifier 3×IN/2×OUT VHF/DAB/2×UHF LTE700
Johansson

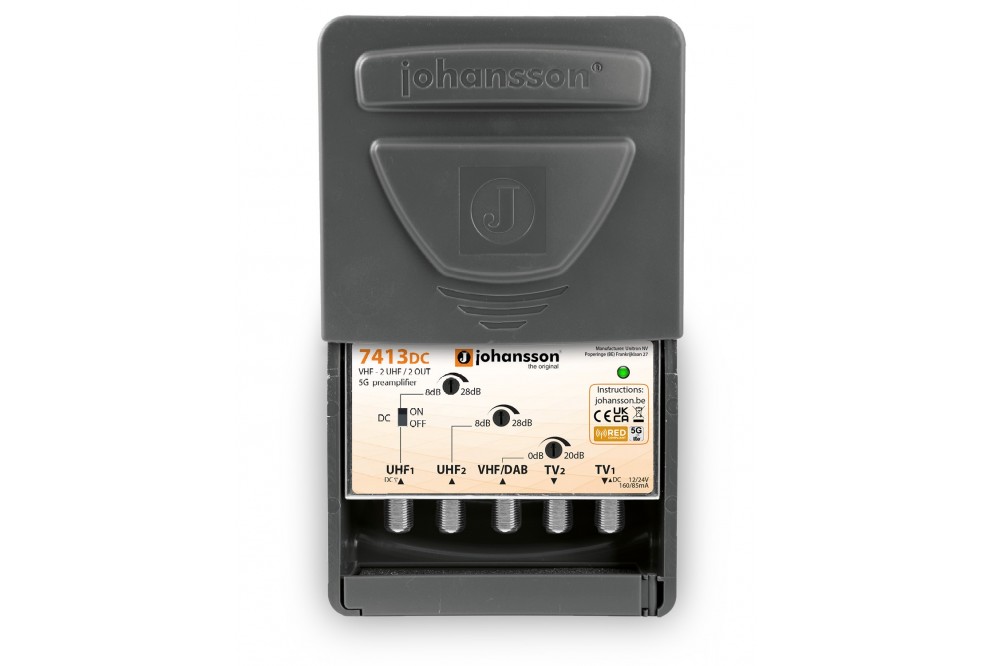

Johansson 7413DC combines and amplifies signals from one VHF/DAB antenna and two UHF antennas to two wideband outputs. Adjustable gain is 0–20 dB on VHF and 8–28 dB on UHF.
Masthead amplifier: 5G rejection, switchable DC pass on the UHF1 input and power LED. Operating voltage: 12–24 VDC, F connectors and mast or wall mounting.
SKU :
J7413DCCategory :
Masthead Amplifiers7413DC masthead amplifier specifications
Inputs: VHF/BIII/DAB + UHF1 + UHF2; outputs: 2
Frequency ranges: VHF 170–240 MHz; UHF1/UHF2 470–694 MHz (channels 21–48)
Gain: VHF 0–20 dB; UHF1/UHF2 8–28 dB
Noise figure: VHF 2.5 dB; UHF1/UHF2 1.5 dB
Maximum input level: VHF 96 dBµV; UHF1/UHF2 78 dBµV
Maximum output level (IM3: 2c/−60 dB): VHF 109 dBµV; UHF1/UHF2 106 dBµV
DC pass on UHF1 input: switchable, maximum 500 mA
Operating voltage: 12–24 VDC
Current consumption: 160 mA / 12 V; 85 mA / 24 V
Connectors: F; mast or wall mounting
Dimensions: 122 × 98 × 56 mm
Inputs: VHF/BIII/DAB + UHF1 + UHF2; outputs: 2
Frequency ranges: VHF 170–240 MHz; UHF1/UHF2 470–694 MHz (channels 21–48)
Gain: VHF 0–20 dB; UHF1/UHF2 8–28 dB
Noise figure: VHF 2.5 dB; UHF1/UHF2 1.5 dB
Maximum input level: VHF 96 dBµV; UHF1/UHF2 78 dBµV
Maximum output level (IM3: 2c/−60 dB): VHF 109 dBµV; UHF1/UHF2 106 dBµV
DC pass on UHF1 input: switchable, maximum 500 mA
Operating voltage: 12–24 VDC
Current consumption: 160 mA / 12 V; 85 mA / 24 V
Connectors: F; mast or wall mounting
Dimensions: 122 × 98 × 56 mm
| General | |
|---|---|
| Brand | Johansson |
| Tekniset tiedot | |
| Connector 1 | F |
| Connector 2 | - F |
| Polarity | Female |
| Active Component | Mastovahvistimet |
Johansson 7413DC – manufacturer specifications (EN)
