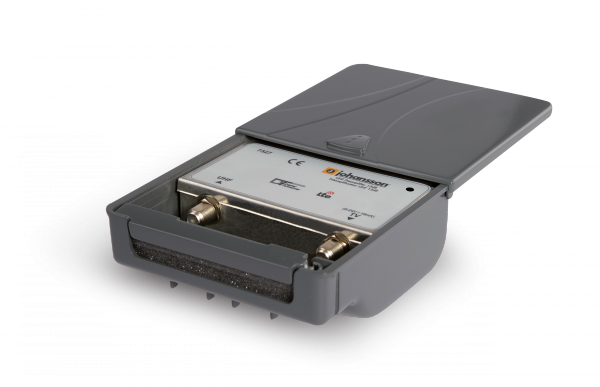

Masthead amplifier UHF 15 dB LTE700, 5-24 V DC, noise figure <2.0
Johansson
Johansson 7327L2 is a UHF masthead amplifier for terrestrial TV reception. It provides fixed 15 dB gain over 470–694 MHz (channels 21–48) with 5G rejection.
Masthead amplifier: One input and one output, 2 dB noise figure and power LED. Operating voltage: 5–24 VDC; current consumption: 20 mA. Mast or wall mounting.
Electrical number :
7327L2 masthead amplifier specifications
Frequency range: 470–694 MHz (channels 21–48)
Gain: 15 dB
Noise figure: 2.0 dB
Input level: 78 dBµV
Output level: 97 dBµV
Operating voltage: 5–24 VDC
Current consumption: 20 mA
Dimensions: 120 × 115 × 50 mm
Frequency range: 470–694 MHz (channels 21–48)
Gain: 15 dB
Noise figure: 2.0 dB
Input level: 78 dBµV
Output level: 97 dBµV
Operating voltage: 5–24 VDC
Current consumption: 20 mA
Dimensions: 120 × 115 × 50 mm
| General | |
|---|---|
| Brand | Johansson |
| Tekniset tiedot | |
| Connector 1 | F |
| Connector 2 | - F |
| Polarity | Female |
| Active Component | Mastovahvistimet |
J7327L2_m.pdf
Download
