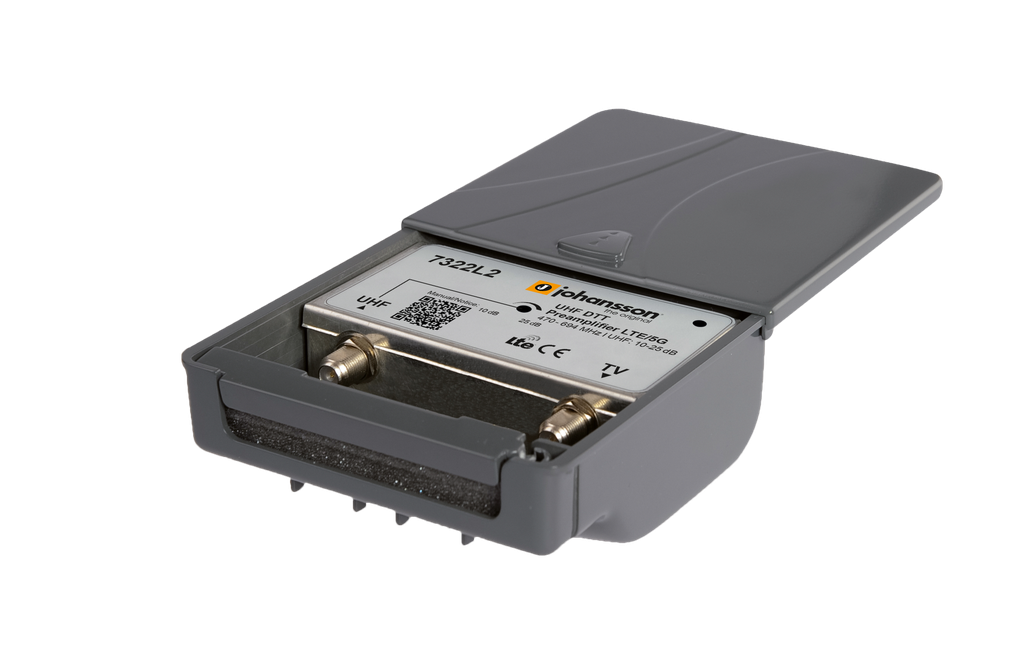

Masthead amplifier UHF 10-25 dB LTE700, V DC 24 V, noise figure <2 dB
Johansson
Johansson 7322L2 is a compact UHF masthead amplifier for terrestrial TV reception. Gain is adjustable from 10 to 25 dB over 470–694 MHz (channels 21–48).
Masthead amplifier: One input and one output, 5G rejection, built-in GSM filter and power LED. Operating voltage: 24 VDC. Mast or wall mounting.
7322L2 masthead amplifier specifications
Frequency range: 470–694 MHz (channels 21–48)
Adjustable gain: 10–25 dB
Noise figure: 2.0 dB
Output level: 105 dBµV
Operating voltage: 24 VDC
Current consumption: 50 mA
Dimensions: 105 × 105 × 37 mm
Frequency range: 470–694 MHz (channels 21–48)
Adjustable gain: 10–25 dB
Noise figure: 2.0 dB
Output level: 105 dBµV
Operating voltage: 24 VDC
Current consumption: 50 mA
Dimensions: 105 × 105 × 37 mm
| General | |
|---|---|
| Brand | Johansson |
| Tekniset tiedot | |
| Connector 1 | F |
| Connector 2 | - F |
| Polarity | Female |
| Active Component | Mastovahvistimet |
Johansson 7322L2 – technical data and manual (EN)
Download
