Product description

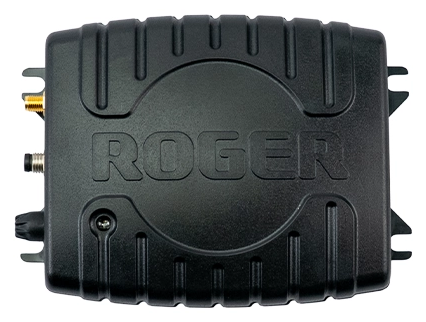

The Roger GNSS repeater receives satellite signals with an antenna mounted outside the building and re-radiates them indoors or into a covered space. The GNSS receiver keeps tracking the satellites, so the position is instantly available when a vehicle or device moves from indoors to outdoors.
Typical applications include emergency stations and depots, control rooms, tunnels and traffic stations, and ships. The outdoor antenna and antenna cable are purchased separately.
Features
- Automatic gain limitation
- Oscillation prevention with indicator
- CE-approved repeater
- Position fix is maintained when moving from indoors to outdoors
Technical specifications
- Frequencies: Galileo E1 (1.57542 GHz), GPS L1 (1.57542 GHz), GLONASS G1 (1.602 GHz), BeiDou B1 (1.5611 GHz)
- Indoor coverage: up to 50 m
- Overall gain: over 40 dB, adjustable 0–40 dB
- Input connector: SMA female, 50 Ω

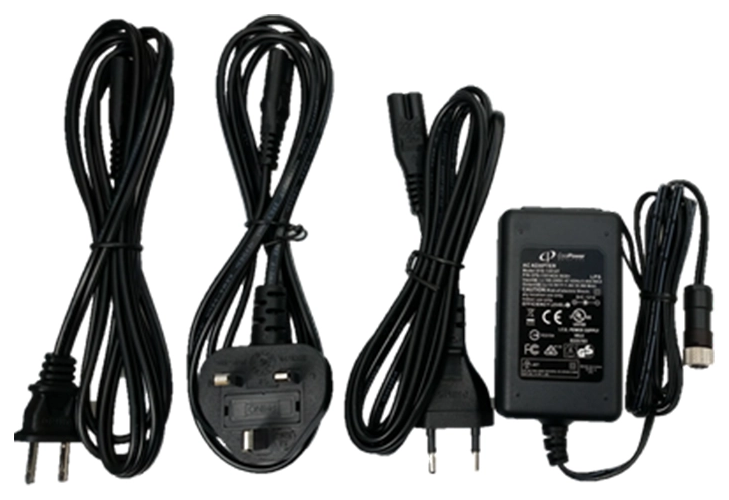

- Supply voltage: 12 VDC, current consumption 300 mA
- Antenna power output: +5 VDC, 100 mA
- TX antenna gain: max. +4 dBd, RHCP
- Ingress protection: IP40, colour black
- Operating temperature: −25…+55 °C
- Dimensions and weight: 110 × 143 × 28 mm, 165 g
