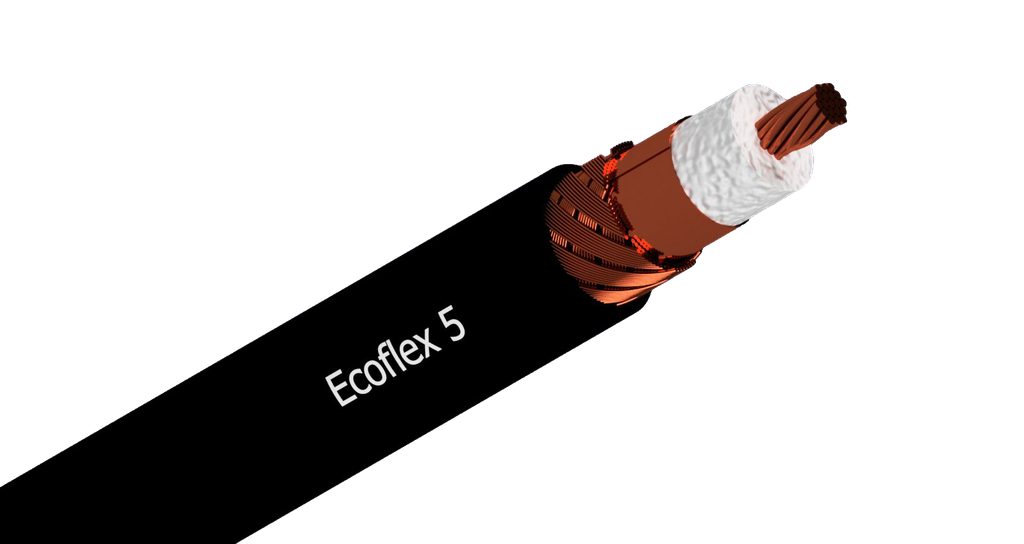

Ecoflex 5 – technical specifications and applications
Thin, highly flexible 50 Ω coaxial cable for antenna and RF connections up to 6 GHz. The 19-strand copper conductor and 5.5 mm outer diameter suit confined installation spaces. UV-stabilised PVC jacket for indoor and outdoor use.
Foamed polyethylene insulation reduces transmission losses. Copper foil and copper braid provide double shielding to reduce the effect of external interference on the signal. The UV-stabilised PVC jacket is suitable for indoor and outdoor installations.
Construction and dimensions
- Outer diameter: Ø 5.5 ± 0.2 mm
- Inner conductor: Ø 1.44 mm; stranded copper (OFC), 19 × 0.287 mm (17 AWG)
- Dielectric: foamed PE with skin, Ø 3.7 mm
- Shielding: overlapping copper foil, 100% coverage; copper braid, 80% coverage
- Outer conductor diameter: Ø 4.2 mm
- Jacket: PVC, black
- Weight: 42 g/m (42 kg/km)
- Supply: sold by the metre; standard reel 102 m (K102)
Electrical properties
Values at +20 °C unless otherwise stated.
- Impedance: 50 ± 2 Ω
- Maximum operating frequency: 6 GHz
- Capacitance: 82 pF/m (1 kHz)
- Velocity factor: 0.8
- Shielding attenuation: ≥ 85 dB at 1 GHz
- DC resistance: inner conductor ≤ 15 Ω/km; outer conductor 17 Ω/km
- Insulation resistance: ≥ 5 GΩ·km
- Test voltage: 4 kV DC (inner conductor–shield)
- Maximum voltage: 2.5 kV
Attenuation by frequency
Typical attenuation in dB / 100 m at +20 °C.
All 20 attenuation values (10–6000 MHz)
Example: the calculated attenuation of a 25-metre cable at 1 GHz is approximately 6.53 dB. Connector losses are additional.
Power handling
Maximum power in watts at +40 °C, as specified by the manufacturer.
Installation and operating conditions
- Minimum bend radius: 5 × outer diameter for a single bend; 10 × outer diameter for repeated bending
- Temperature, transport and fixed installation: −55…+85 °C
- Temperature, mobile use: −40…+85 °C
- Maximum tensile force: 150 N
- Installation: indoor and outdoor use; UV-resistant jacket
Select 50 Ω connectors sized for Ecoflex 5 cable and follow the connector manufacturer’s stripping and assembly instructions. Protect outdoor connections against moisture and avoid crushing the cable.
Fire classification and documents
- CPR fire class: Fca (EN 50575)
Manufacturer’s technical data: SSB Ecoflex 5 . The product-specific data sheet and Declaration of Performance (DoP) are also available on the Documents tab.
