Ecoflex 10 FRNC – technical specifications and applications

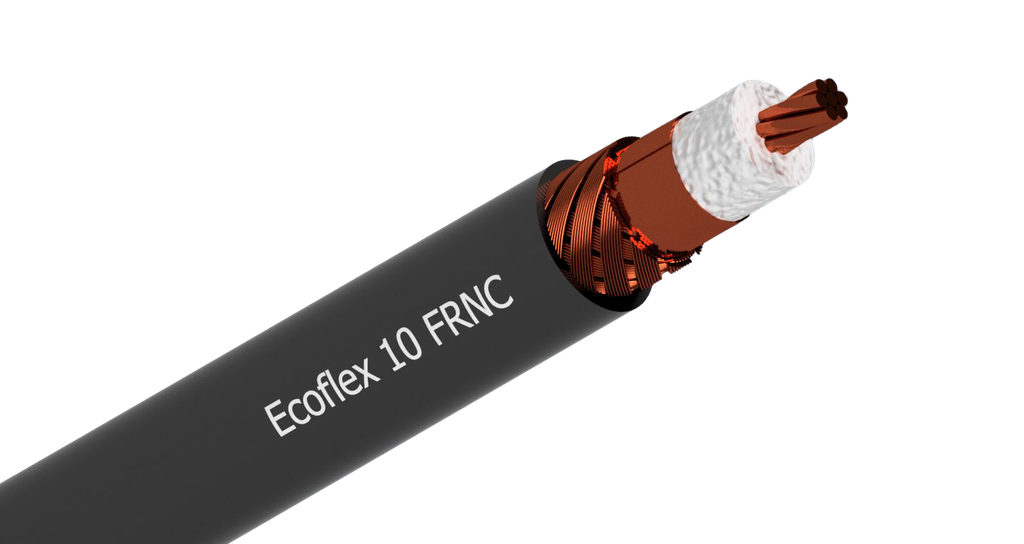

Low-loss, flexible 50 Ω coaxial cable for antenna and RF connections at frequencies up to 6 GHz. The copper inner conductor and halogen-free FRNC jacket are suitable for building cabling requiring CPR class Cca.
Foamed polyethylene insulation reduces transmission losses. Copper foil and copper braid provide double shielding to reduce the effect of external interference on the signal. Halogen-free, low-smoke and UV-resistant FRNC jacket.
Construction and dimensions
- Outer diameter: Ø 10.2 ± 0.2 mm
- Inner conductor: Ø 2.85 mm; stranded copper (OFC), 7 × 1.0 mm (10 AWG)
- Dielectric: foamed PE with skin, Ø 7.2 mm
- Shielding: overlapping copper foil, 100% coverage; copper braid, 75% coverage
- Outer conductor diameter: Ø 7.9 mm
- Jacket: FRNC/LSZH, black
- Weight: 136 g/m (136 kg/km)
- Supply: sold by the metre; standard reel 505 m (K505)
Electrical properties
Values at +20 °C unless otherwise stated.
- Impedance: 50 ± 2 Ω
- Maximum operating frequency: 6 GHz
- Capacitance: 78 pF/m (1 kHz)
- Velocity factor: 0.85
- Shielding attenuation: ≥ 90 dB at 1 GHz
- DC resistance: inner conductor ≤ 3.5 Ω/km; outer conductor 6.6 Ω/km
- Insulation resistance: ≥ 10 GΩ·km
- Test voltage: 7 kV DC (inner conductor–shield)
- Maximum voltage: 5 kV
Attenuation by frequency
Typical attenuation in dB / 100 m at +20 °C.
All 20 attenuation values (5–6000 MHz)
Example: the calculated attenuation of a 25-metre cable at 1 GHz is approximately 3.37 dB. Connector losses are additional.
Power handling
Maximum power in watts at +40 °C, as specified by the manufacturer.
Installation and operating conditions
- Minimum bend radius: 4 × outer diameter for a single bend; 8 × outer diameter for repeated bending
- Temperature, transport and fixed installation: −55…+85 °C
- Temperature, mobile use: −40…+85 °C
- Maximum tensile force: 600 N
- Installation: indoor and outdoor use; UV-resistant jacket
Select 50 Ω connectors sized for Ecoflex 10 FRNC cable and follow the connector manufacturer’s stripping and assembly instructions. Protect outdoor connections against moisture and avoid crushing the cable.
Fire classification and documents
- CPR fire class: Cca-s1,d0,a1 (EN 50575)
- Jacket properties: halogen-free, low-smoke, flame-retardant (FRNC/LSZH)
Manufacturer’s technical data: SSB Ecoflex 10 FRNC . Product-specific attachments are also available on the Documents tab.
