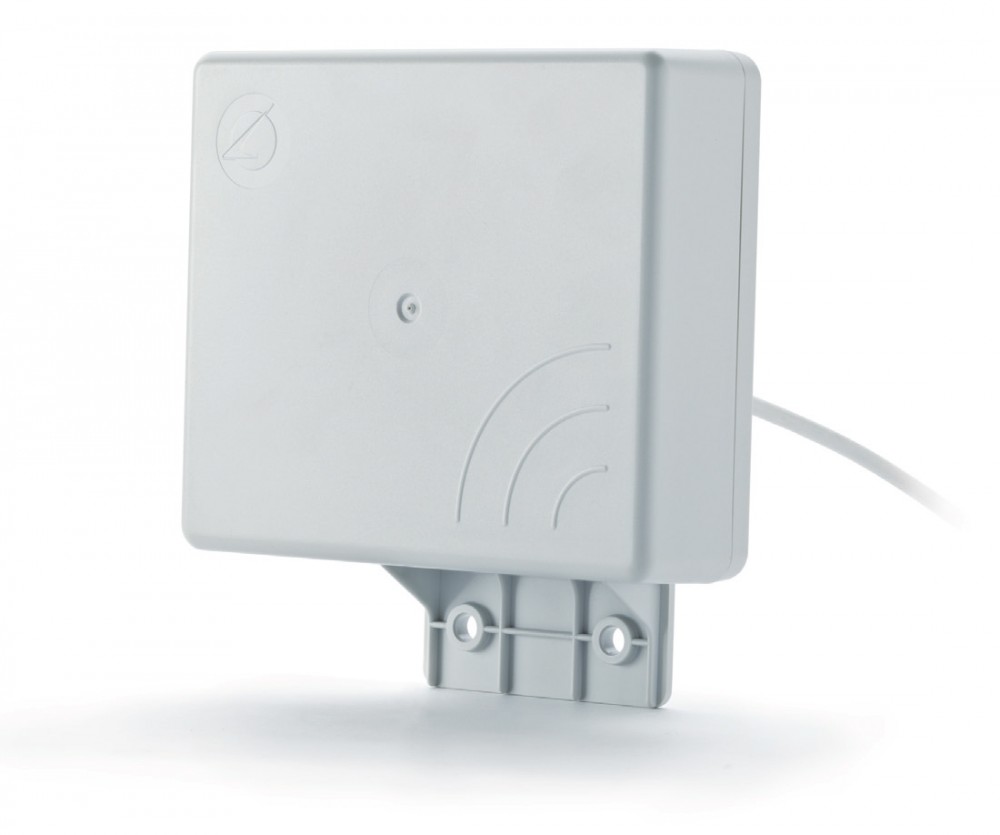

4G panel antenna, 790–2700 MHz, 9 dBi, 0.3 m cable, wall/mast mounting, N male
Sirio
Directional panel antenna with a 0.3 m cable and N male connector. The antenna is primarily used as an indoor antenna in passive repeater solutions.
Frequency range:
790–960 MHz / 1710–2700 MHz
Gain:
790–960 MHz: 6–7 dBi
1710–1880 MHz: 9 dBi
1900–2170 MHz: 9 dBi
2300–2700 MHz: 8–9 dBi
VSWR: <2:1
Dimensions: 170 × 155 × 75 mm
Weight: 580 g
Operating temperature: −30 to +70 °C
SKU :
8610128EAN :
6416280455166Category :
4G, 5G, GPS & Wi-Fi AntennasSähkönumero :
7402009Tags :
Electrical number :
| General | |
|---|---|
| Brand | Sirio |
| poistetut | |
| Color – DO NOT USE | Harmaa |
| Tekniset tiedot | |
| Supported Connectivity (Technology) | 5G, 4G, 2G |
| Antenna Features | Single-function antenna, SiSo, Mobile broadband antenna, Directional |
| Mounting Location | Outdoor, Indoor, Wall, Mast |
| Frequency | 790-2700 |
| Connector 1 | N |
| Color | Grey, Grey |
| Polarity | male |
| Cable Length (m) | 0,3 m |
8610128_ds.pdf
Download
