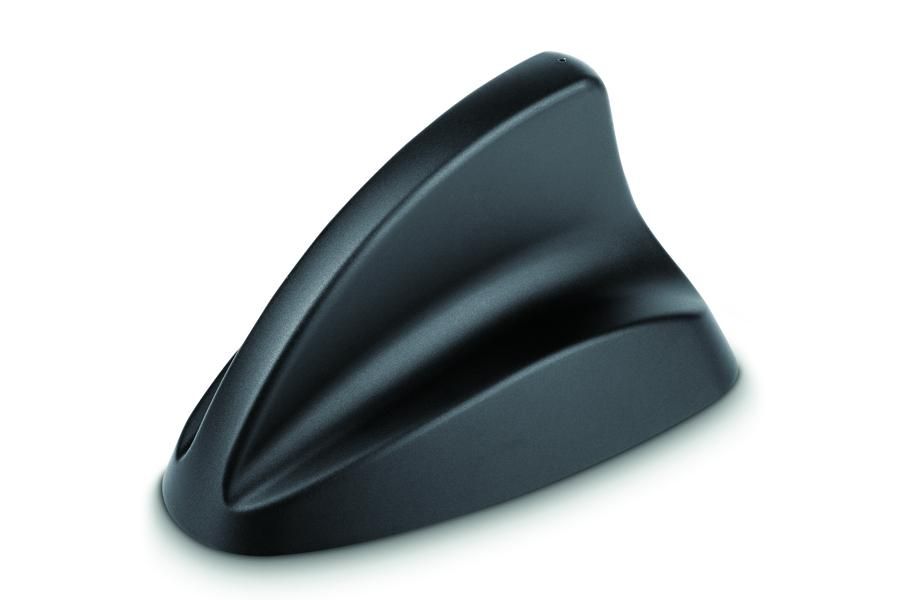

Shark 2 COMLOC WIFI roof antenna for vehicle mobile data, dual-band WiFi, Bluetooth and GNSS positioning. Three FAKRA male connections and IP68 protection. The specified 5G band is 3400–3800 MHz.
Construction and installation
- Dimensions: 117 × 76 × 62 mm
- Ingress protection: IP68
- Mounting hole: square 15 × 15 mm or round Ø 19 mm
2G / 3G / 4G / 5G
- Frequency range: 2G: 876–935 / 1710–1880 MHz; 3G: 1900–2025 / 2110–2200 MHz; 4G: 698–960 / 1710–2160 / 2490–2690 MHz; 5G: 3400–3800 MHz
- Connector: FAKRA male, bordeaux (D)
- Cable: RG 174, 290 mm
- Impedance: 50 Ω
- Gain: 4 dBi (peak)
- VSWR: 2:1–2,5:1
- Maximum power: 4 W
WiFi / Bluetooth
- Frequency range: 2401–2495 / 5170–5850 MHz
- Connector: FAKRA male, violet (H)
- Cable: RG 174, 120 mm
- Impedance: 50 Ω
- Gain: 4 dBi (peak)
- VSWR: 2:1
- Maximum power: 4 W
GNSS
- Frequency range: 1559–1610 MHz
- Connector: FAKRA male, blue (C)
- Cable: RG 174, 290 mm
- Power supply: 3–5 V phantom
- Current consumption: 45 mA maximum
- Impedance: 50 Ω
- Gain: 28 dBi
- VSWR: 2:1
Installation and delivery
Extension cables are not included. Select extension cables compatible with the antenna connectors and receiver.
Source: MTA Product Catalogue Antenna Systems v2.1, catalogue page 21.
