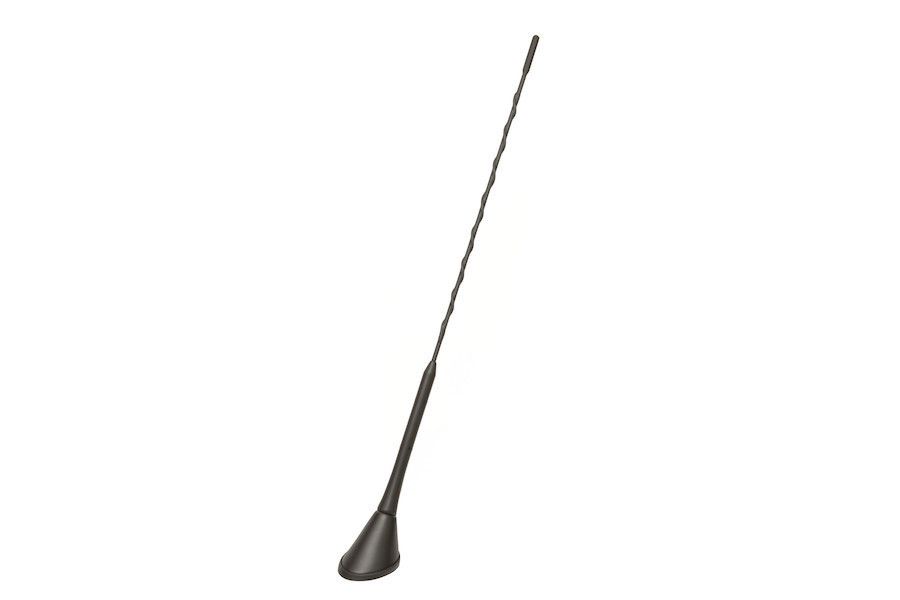

Roof antenna for vehicle AM/FM and DAB radio reception, with a 300 mm Antinoise rod and 60° base. Separate FAKRA male connections for AM/FM and DAB signals.
Construction and installation
- Rod length: 300 mm
- Rod thread: M5
- Base angle: 60°
- Base dimensions: 60 × 43 mm
- Ingress protection: IP68
- Mounting hole: square 15 × 15 mm or round Ø 19 mm
AM/FM
- Frequency range: AM 525–1710 kHz; FM 87,5–108 MHz
- Connector: FAKRA male, white (B)
- Cable: RG 174, 200 mm
- Impedance: 50 Ω
- Gain: FM: 2.5 dBi (peak)
DAB
- Frequency range: 174–240 MHz
- Connector: FAKRA male, black (A)
- Cable: RG 174, 245 mm
- Impedance: 50 Ω
- Gain: 13 dBi (peak)
- VSWR: < 2,5:1
Electrical specifications
- Power supply: 12 V, dedicated supply
- Current consumption: 75 mA (± 10 mA)
Installation and delivery
Extension cables are not included. Select extension cables compatible with the antenna connectors and receiver.
Source: MTA Product Catalogue Antenna Systems v2.1, catalogue page 7.
