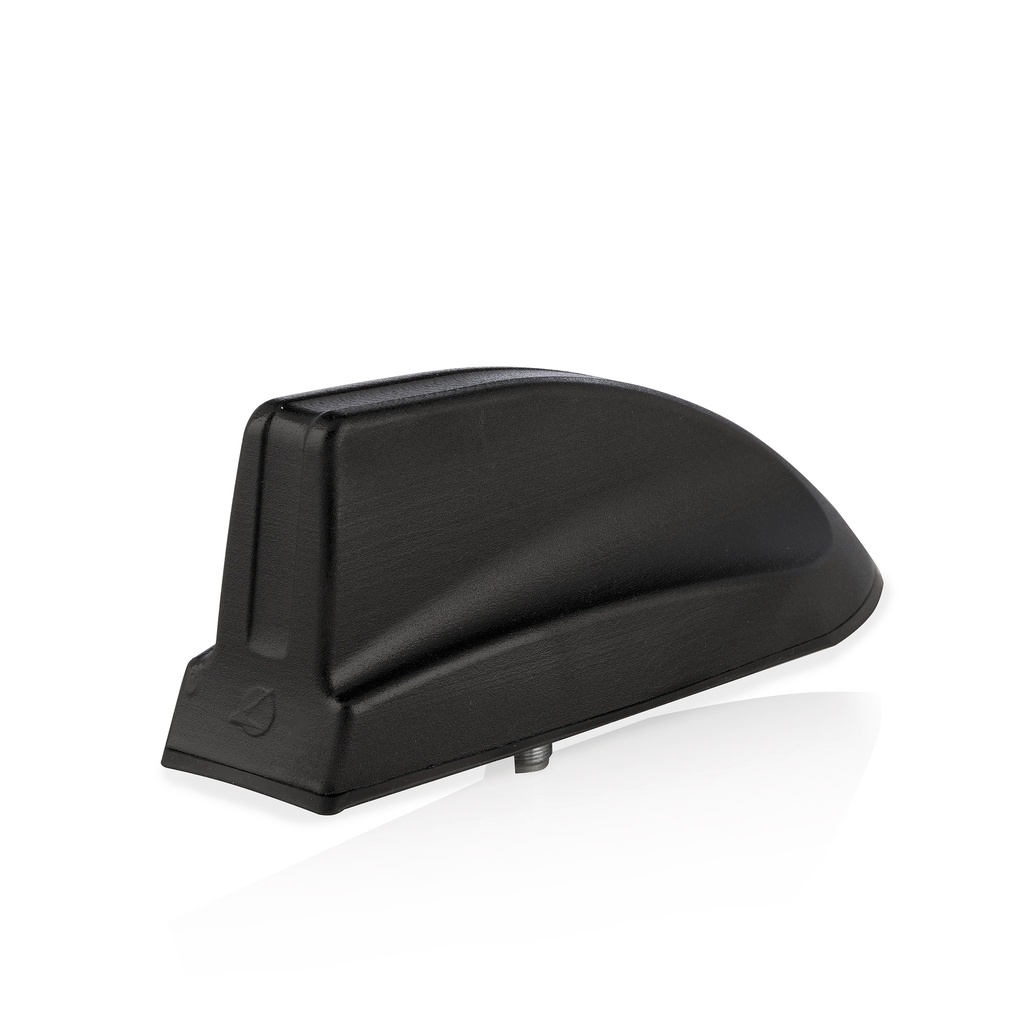

The Shark 3 QUAD roof antenna combines AM/FM and DAB radio reception, GNSS positioning and 2G/3G/4G connectivity. Four separate FAKRA male connections and IP66K protection.
Construction and installation
- Dimensions: 192 × 62 × 67 mm
- Ingress protection: IP66K
- Mounting hole: round Ø 17–23 mm
AM/FM
- Frequency range: AM 525–1710 kHz; FM 87,5–108 MHz
- Connector: FAKRA male, white (B)
- Cable: RG 174, 210 mm
- Power supply: 12 V phantom
- Current consumption: 63 mA
- Impedance: FM: 50 Ω
- VSWR: FM: < 2:1
DAB
- Frequency range: 174–240 MHz
- Connector: FAKRA male, black (A)
- Cable: RG 174, 310 mm
- Power supply: 12 V phantom
- Current consumption: 40 mA
- Impedance: 50 Ω
- Gain: 6 dBi
- VSWR: < 3:1
GNSS
- Frequency range: 1559–1610 MHz
- Connector: FAKRA male, blue (C)
- Cable: RG 174, 410 mm
- Power supply: 3–5 V phantom
- Current consumption: 31 mA
- Impedance: 50 Ω
- Gain: 28 dBi
- VSWR: 1,7:1
2G / 3G / 4G
- Frequency range: 2G: 876–935 / 1710–1880 MHz; 3G: 1900–2025 / 2110–2200 MHz; 4G: 698–960 / 1710–2160 / 2490–2690 MHz
- Connector: FAKRA male, bordeaux (D)
- Cable: RG 174, 260 mm
- Impedance: 50 Ω
- Gain: 4 dBi (peak)
- VSWR: 3:1
- Maximum power: 4 W
Installation and delivery
The antenna must be powered through both the AM/FM and DAB connections. The GNSS connection requires its own 3–5 V phantom supply.
Extension cables are not included. Select extension cables compatible with the antenna connectors and receiver.
Source: MTA Product Catalogue Antenna Systems v2.1, catalogue page 4.
