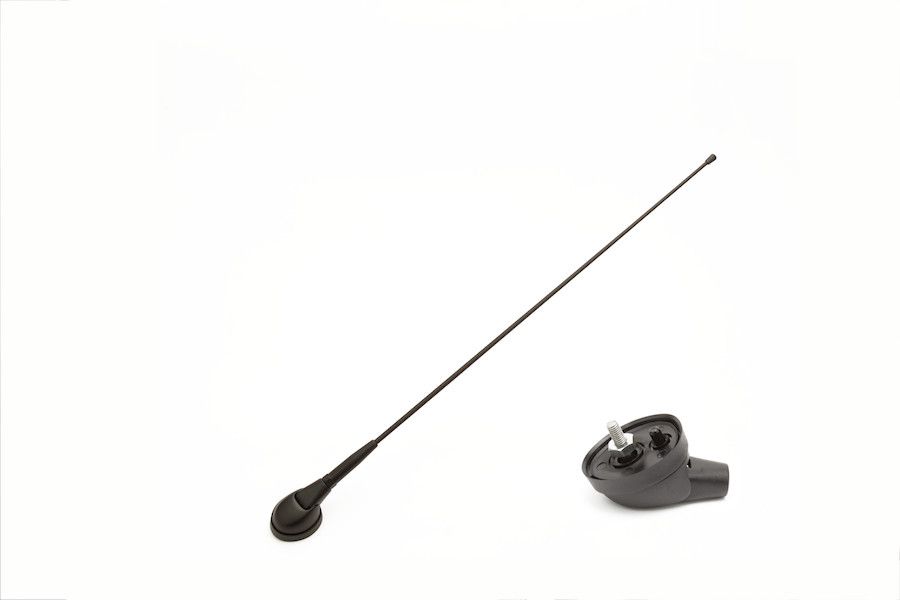

Passive AM/FM antenna, universal model for vehicle roof installation. Smooth 400 mm rod, adjustable base and 2.5 m RG 58 cable with DIN male connector.
Construction and installation
- Rod length: 400 mm
- Rod thread: M6
- Base angle: 0–90°
- Base dimensions: 42 × 37 mm
- Ingress protection: IP68
Electrical specifications
- Frequency range: AM 525–1710 kHz; FM 87,5–108 MHz
- Impedance: 50 Ω
- Power supply: passive, no separate power supply
Connections and cable
- Connector: DIN male
- Cable: RG 58, 2,5 m
Installation and delivery
DAB reception requires a separate active or passive AM/FM–DAB splitter. DAB-ready does not mean a separate DAB connection is provided.
Check compatibility between the antenna base and the vehicle mounting position before installation.
Source: MTA Product Catalogue Antenna Systems v2.1, catalogue page 11.
