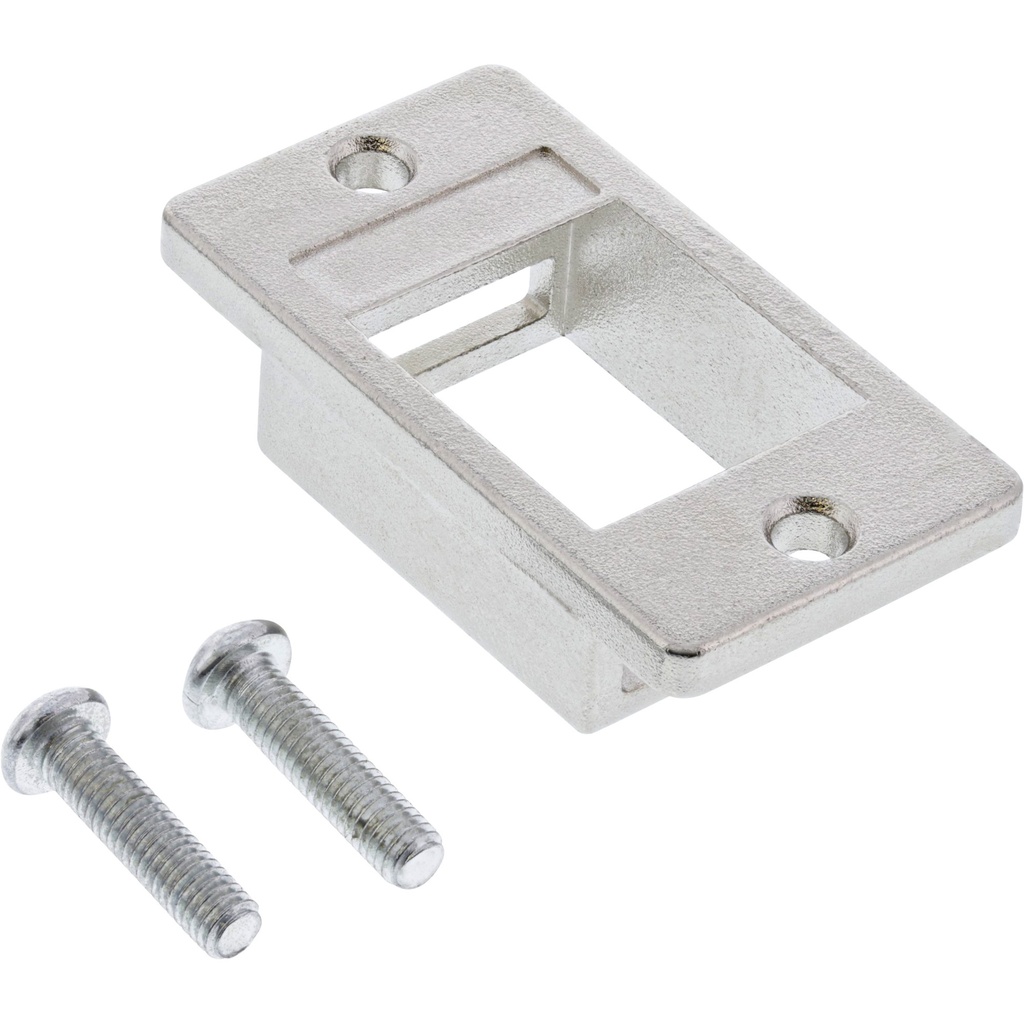

The InLine® Keystone module holder brings a single Keystone port neatly to a flat surface. A Keystone module or adapter snaps into the holder, and the straight 0° outlet keeps the cable in line.
The holder can be mounted on enclosure back panels, in cable ducts and on wood and metal cladding. It is suitable for retrofits, on-site installations and service work.
Features
- One Keystone slot for a module or adapter, Keystone SNAP-In compatible
- Sturdy zinc die-cast housing
- Straight 0° outlet
- Mounting cutout 23 x 17.5 mm, hole spacing 28.9 mm, hole diameter 3.1 mm
Technical data
- Manufacturer: InLine® (INTOS ELECTRONIC AG)
- Item number: 76205A
- Slots: 1 x Keystone module or adapter
- Material: zinc die-cast
- Dimensions: length 35.5 mm, width 19.1 mm, height 9.8 mm
- Shielding: no
- Network category: depends on the module used
- Weight: 12 g
- EAN: 4043718282104
Package contents
1-port mounting frame without module and 2 x M3 x 12 mm mounting screws. Keystone module sold separately.
