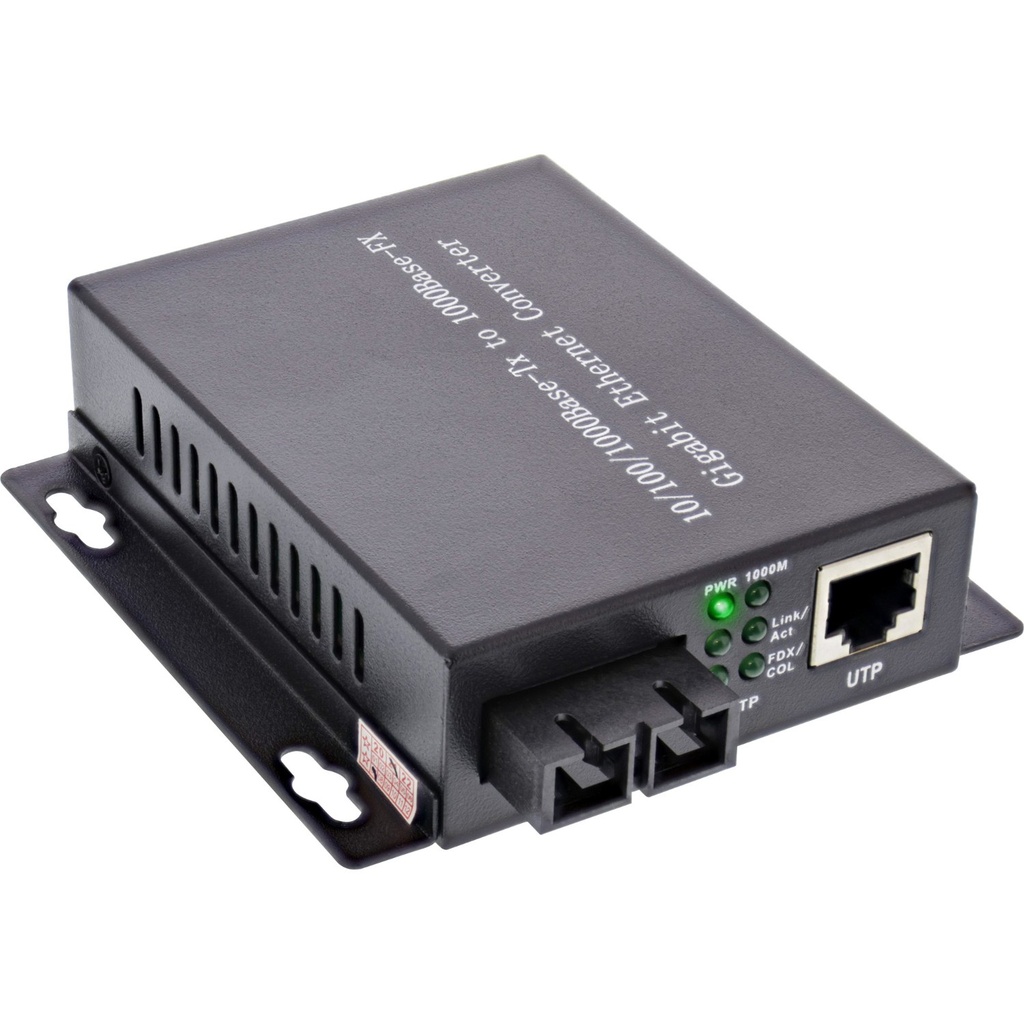

The InLine® 66659A is a compact gigabit media converter that converts a 10/100/1000Base-T copper port (RJ45) to a 1000Base-FX fibre port (SC Duplex, multimode, 1310 nm). It lets you extend a network over fibre for up to 550 metres, for example between buildings, without replacing the existing copper cabling.
Features
- Fibre link over multimode fibre up to 550 m, 1310 nm wavelength
- Auto MDI/MDI-X and automatic full/half duplex negotiation
- Link Fault Pass Through (LFP) passes a link failure on to the other end
- Status LEDs: Power, Link and Activity
- Compact size for desktop, installation and service use
Technical specifications
- Ports: 1 × RJ45 (10/100/1000Base-T), 1 × SC Duplex (1000Base-FX, multimode)
- Wavelength: 1310 nm (TX)
- Maximum distance: 550 m
- Data rate: 10/100/1000 Mb/s
- Standards: IEEE 802.3 10Base-T, IEEE 802.3u 10/100Base-TX/X, IEEE 802.1q, IEEE 802.1p (QoS), IEEE 802.1d, IEEE 802.3z, IEEE 802.3ab
- Power supply: external switching power supply 5 V DC / 1 A
- Operating temperature: 0 to +60 °C
- Storage temperature: −20 to +70 °C
- Dimensions (L × W × H): 95 × 70 × 25 mm
- Weight: 177 g
Please note
- The fibre link requires a compatible 1000Base-FX multimode device at the other end, for example a second matching media converter.
