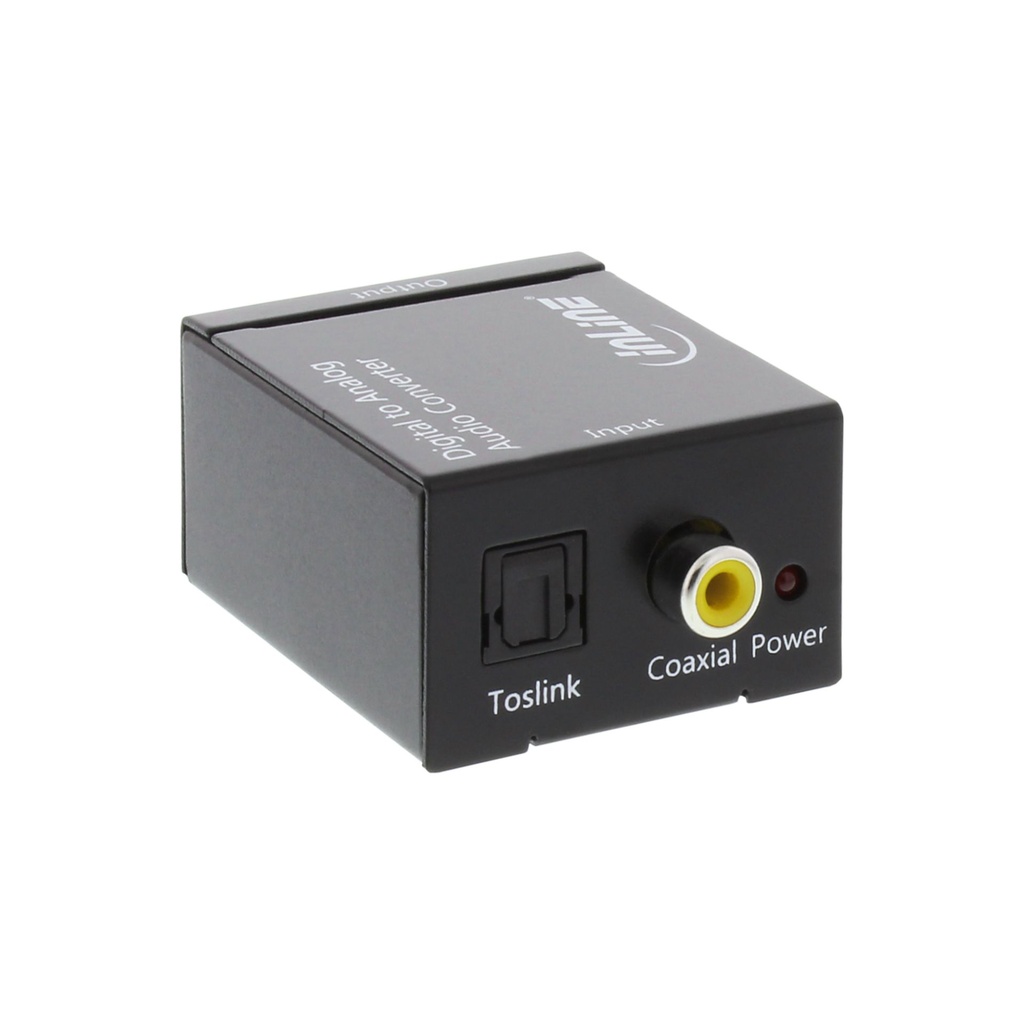

InLine 65002 connects a digital audio source to an analogue stereo system. Choose the optical TOSLINK or coaxial RCA input and send audio to an amplifier or active speakers through the two RCA outputs.
Technical specifications
- Inputs: optical TOSLINK and coaxial RCA, S/PDIF
- Output: 2 × RCA, analogue stereo L/R
- Sampling rates: 32, 44.1, 48 and 96 kHz; 24-bit S/PDIF
- Power supply: 5 V DC / 1 A via mains adapter
- Dimensions: 63.6 × 41.3 × 26.4 mm
- Operating temperature: 0–40 °C; indoor use only
Connection and use
Switch off the equipment before making connections. Connect the audio source via TOSLINK or coaxial cable, the amplifier to the RCA L/R outputs, and finally the mains adapter. If both digital inputs are connected, TOSLINK takes priority.
Package contents
- InLine 65002 D/A audio converter
- 5 V DC / 1 A mains adapter (100–240 V AC, 50/60 Hz)
- User manual
