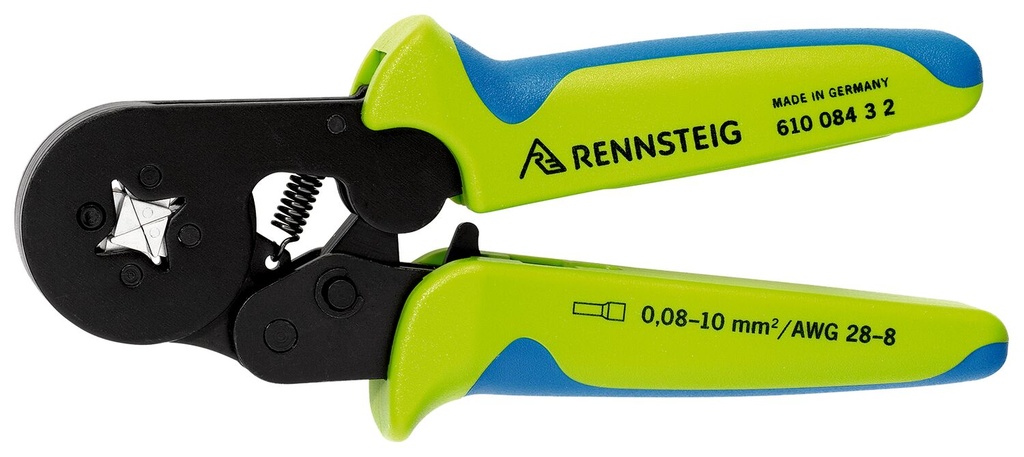

Rennsteig PEW 8.84 is a self-adjusting crimping tool for insulated and uninsulated ferrules to DIN 46228. Ferrules are inserted from the side of the tool.
Features
- Automatic adjustment to the ferrule size.
- Force-amplifying lever mechanism, factory-calibrated crimping pressure and a releasable ratchet mechanism.
- Two profiled and two smooth crimping surfaces.
- Specially tempered spring steel, burnished finish and ergonomic two-component handles.
Technical specifications
- Ferrules: 0.08–10.0 mm² / AWG 28–8.
- Twin ferrules: 2 × 0.25–6.0 mm² / 2 × AWG 22–8.
- One self-adjusting crimping position, side entry.
- Dimensions: 176 × 77 × 23 mm. Weight: 440 g.
- Manufacturer part number: 610 084 3 2. EAN: 4049002018145.
