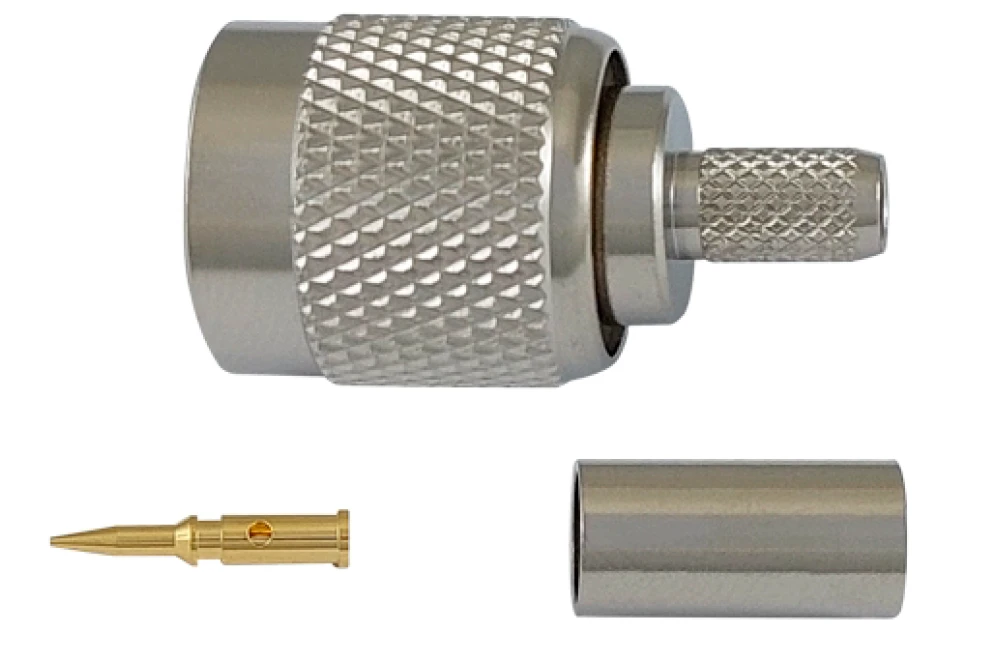

The SSB TNC male connector (SSB 7741) is a crimp connector for Aircell 5 coaxial cable. The threaded TNC coupling suits antenna and radio equipment connections where the joint must withstand vibration.
Features
- Connector type: TNC male, straight, crimp
- Cable: Aircell 5
- Gasket: silicone
- RoHS: yes
Technical specifications
- Impedance: 50 Ω
- Frequency: up to 6 GHz
- VSWR: ≤ 1.30
- Working voltage: ≤ 500 V rms
- Insulation resistance: ≥ 5 GΩ
- Inner contact resistance: ≤ 1.5 mΩ
- Outer contact resistance: ≤ 1.0 mΩ
- Operating temperature: −40 °C … +155 °C
- Life time: 500 mating cycles
- Weight: 12.1 g
Materials
- Body and metal parts: nickel-plated brass
- Centre pin: gold-plated brass
- Insulation: PTFE
- Retaining ring: nickel-plated SK-5 steel
Installation
The ferrule is crimped with HEX 5.41 mm (0.213″) crimp dies. Manufacturer part number: SSB 7741.
