Masthead amplifier FM/VHF/UHF 10-32 dB 3 inputs, LTE700 +verkkol. 12-24 V DC
Johansson

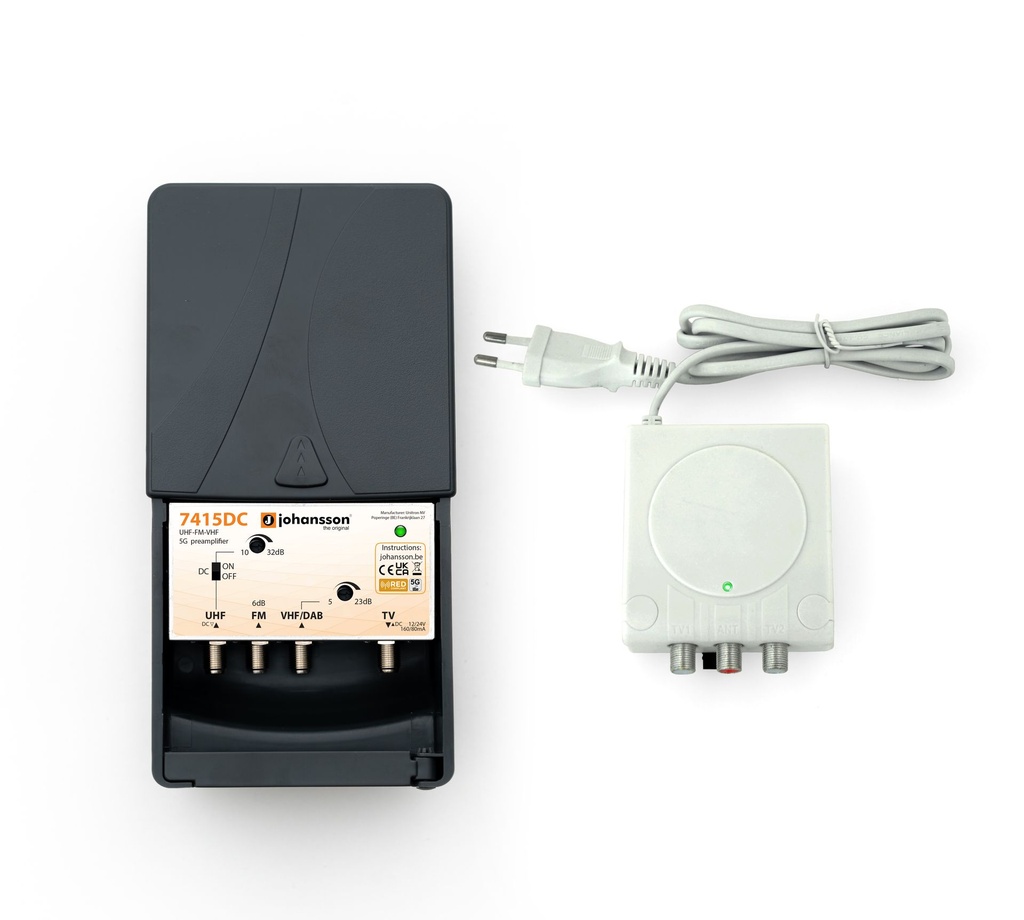

Johansson KIT7415DC includes a three-input 7415DC masthead amplifier and a power supply. The amplifier combines FM, VHF/DAB and UHF antenna signals into one wideband output.
Masthead amplifier: FM gain: 6 dB; adjustable VHF/DAB gain: 5–23 dB; adjustable UHF gain: 10–32 dB. 5G rejection and switchable DC pass on the UHF input. Amplifier operating voltage: 12–24 VDC; mast or wall mounting.
Electrical number :
7415DC masthead amplifier specifications
Inputs: FM + BIII/DAB + UHF; outputs: 1
Frequency ranges: FM 88–108 MHz; BIII/DAB 170–240 MHz; UHF 470–694 MHz (channels 21–48)
Gain: FM 6 dB; BIII/DAB 5–23 dB; UHF 10–32 dB
Noise figure: FM 12 dB; BIII/DAB 3.0 dB; UHF 1.5 dB
Maximum input level: FM 104 dBµV; BIII/DAB 96 dBµV; UHF 82 dBµV
Maximum output level: FM 110 dBµV; BIII/DAB 112 dBµV; UHF 110 dBµV
DC pass on UHF input: switchable, maximum 500 mA
Amplifier operating voltage: 12–24 VDC
Current consumption: 160 mA / 12 V; 80 mA / 24 V
Amplifier dimensions: 122 × 98 × 56 mm
Package contents
7415DC masthead amplifier and power supply
Inputs: FM + BIII/DAB + UHF; outputs: 1
Frequency ranges: FM 88–108 MHz; BIII/DAB 170–240 MHz; UHF 470–694 MHz (channels 21–48)
Gain: FM 6 dB; BIII/DAB 5–23 dB; UHF 10–32 dB
Noise figure: FM 12 dB; BIII/DAB 3.0 dB; UHF 1.5 dB
Maximum input level: FM 104 dBµV; BIII/DAB 96 dBµV; UHF 82 dBµV
Maximum output level: FM 110 dBµV; BIII/DAB 112 dBµV; UHF 110 dBµV
DC pass on UHF input: switchable, maximum 500 mA
Amplifier operating voltage: 12–24 VDC
Current consumption: 160 mA / 12 V; 80 mA / 24 V
Amplifier dimensions: 122 × 98 × 56 mm
Package contents
7415DC masthead amplifier and power supply
| General | |
|---|---|
| Brand | Johansson |
| Tekniset tiedot | |
| Connector 1 | F |
| Connector 2 | - F |
| Polarity | Female |
| Active Component | Vahvistin kitit |
