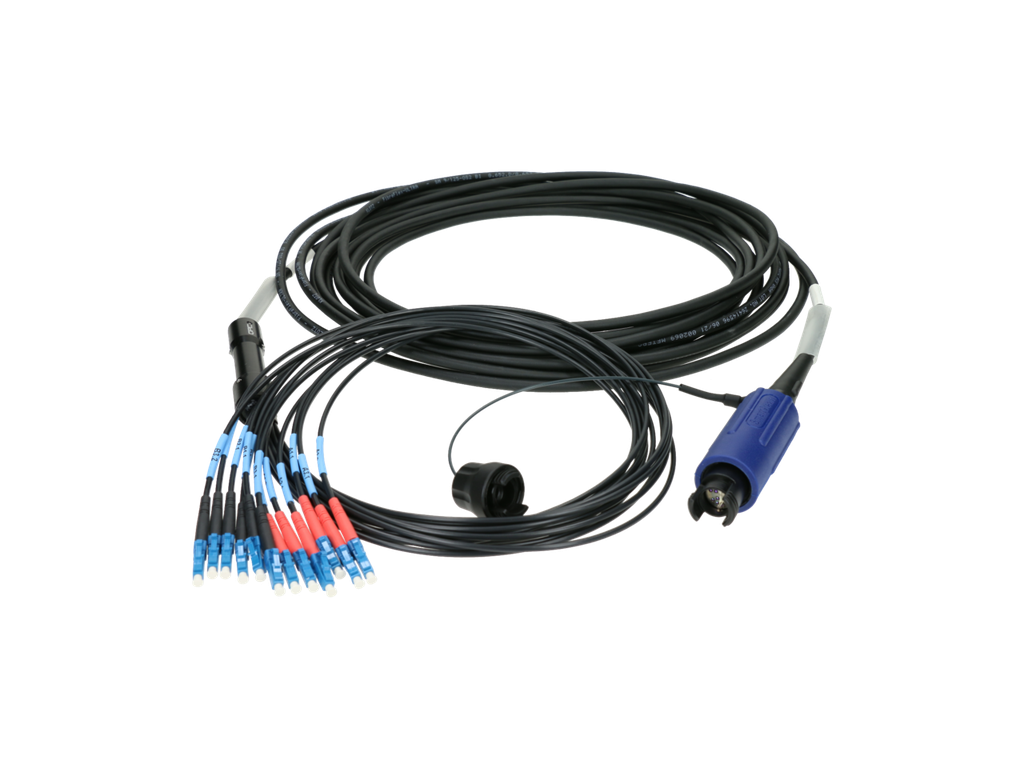

KLOTZ SmartBeam DODEKA 12 – 12 × LC/UPC OS2 breakout cable, 1 m

KLOTZ F12US15A is a 12-channel OS2 singlemode breakout cable for connecting the SmartBeam DODEKA 12 system to LC/UPC equipment. One end has a rugged SmartBeam DODEKA 12 lens connector and the other has 12 individual LC/UPC connectors. SmartBeam uses contactless Expanded Beam technology, so the fiber end faces do not physically touch. This reduces wear, keeps insertion loss stable and improves reliability in dusty and demanding environments. The SmartBeam connector withstands more than 3,000 mating cycles and is IP67 dust- and water-resistant when connected or fitted with the included protective cap. KLOTZ FiberFlex ULTRA contains 12 OS2 singlemode fibers, a durable PUR jacket and aramid-fiber strain relief. It supports up to twelve simultaneous 10 Gbit/s links over distances up to 10 km. The LC/UPC breakout length is 0.7 m. Technical specifications

• Product type: fiber optic breakout cable
• Product series: KLOTZ FiberLink SmartBeam
• Fiber type: singlemode OS2
• Number of fibers: 12
• Fiber dimensions: 9/125 μm
• Fiber construction: 900 μm Tight Buffer
• Cable type: FiberFlex ULTRA
• Outer jacket: PUR
• Colour: black
• Strain relief: aramid fibers
• Tensile strength: up to 1 500 N
• Connector 1: genderless SmartBeam DODEKA 12 -lens connector
• Connector 2: 12 × LC/UPC
• Breakout length: 0.7 m
• SmartBeam connector protection rating: IP67 when connected or fitted with the protective cap
• SmartBeam connector insertion loss: less than 0.5 dB
• Mating durability: more than 3 000 mating cycles
• Fiber attenuation 1 310 nm: less than 0.35 dB/km
• Fiber attenuation 1 550 nm: less than 0.21 dB/km
• Data rate: up to 10 Gbit/s per fiber
• Simultaneous links: up to 12 × 10 Gbit/s
• Transmission distance: up to 10 km
• Operating temperature: −55...+85 °C
• Suitability: indoor and outdoor use
• SmartBeam connector protective cap: included
• Manufacturer: KLOTZ AIS
• Product number: F12US15A
• Cable length: according to the selected variant Available lengths and product numbers
• F12US15A001: 1 m
• F12US15A002: 2 m
• F12US15A003: 3 m
• F12US15A005: 5 m
• F12US15A010: 10 m Compatibility: the SmartBeam connector is compatible with the following systems, among others:
• Fiberfox
• FibreCo HMA
• Stratos
• Optocore
• Eurolens EBC
• Optocon
• FibreCast
• MIL-DTL-83526/20-connectors
• MIL-DTL-83526/21-runkoconnectors Applications
• Broadcast and TV productions
• Studios and outside-broadcast vehicles
• Professional AV systems
• Event and touring use
• SmartBeam-connection of the SmartBeam system to LC/UPC equipment
• Multichannel data links
• Long-distance 10 Gbit/s links
• FiberExplorer and breakout systems
